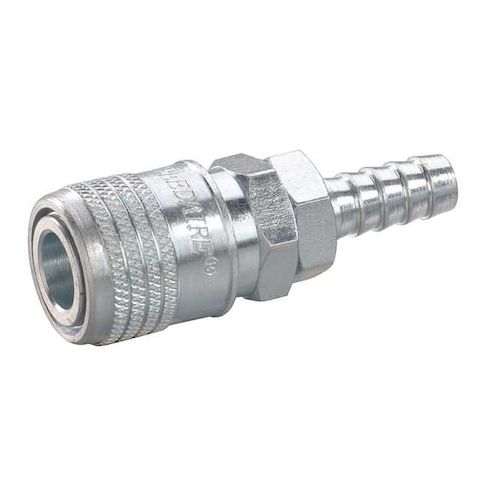

Coupler Body, Hose Barb, 1/4, Steel MPN:30E679
Free Shipping
In Stock
The Speedaire Quick Connect Hose Coupling Socket is a reliable and efficient solution for pneumatic and fluid transfer applications. Designed for use on the end of a hose or air supply, this coupling provides a quick-connect connection method without requiring tools for connection/disconnection. Constructed of steel with a zinc-plated finish, it features a sleeve locking mechanism and poppet valve for controlling flow during connection/disconnection. Suitable for use in industrial settings, this coupling is ideal for applications such as air supply lines, pneumatic tools, and fluid transfer systems, offering a convenient and secure connection solution for a variety of industries and uses.
Top product features:
- Provides a quick-connect connection method without requiring tools for connection/disconnection.
- Includes a poppet valve for controlling flow during connection/disconnection.
- Features a sleeve locking mechanism that holds the connection when installed and used within the specified max working pressure and temperature range.
Top product applications:
- End of Hose or Air Supply
- Pneumatic Applications
- Fluid Transfer Applications
The SPEEDAIRE - 30E679 is a quick connect hose coupling designed for use on the end of a hose or air supply. provides a quick-connect connection method without requiring tools for connection/disconnection. The coupling is rated for use with industrial interchange plugs of the specified interface type and features a sleeve locking mechanism that holds the connection when installed and used within the specified max working pressure and temperature range. It is constructed of steel with a zinc-plated finish, and includes a poppet valve for controlling flow during connection/disconnection. rated for 1/4 in hose inner diameter and 1/4 in body/coupling size, for use in pneumatic and fluid transfer applications within the specified operating parameters (max working pressure and temperature range).
Key Features:
- - Application: End of Hose or Air Supply
- - Connection Type: Hose Barb with 1/4 in barb size
- - Hose Fitting Gender: Male
- Hose Fitting Size: 1/4 in
- - Material: Steel with Zinc Plated finish
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Includes Valve: Yes, Poppet type
- - Interchange Type: Industrial
- - Seal Material: Nitrile
- - Max Flow Rate: maximum rated flow rate: 991.09 L/min
- - Max Working Pressure: maximum working pressure rating: 300 psi at 70°F
- - Temperature Range: rated operating temperature range: -40°F to 150°F
- - Compatibility: For use with Industrial Interchange Plug
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.25
