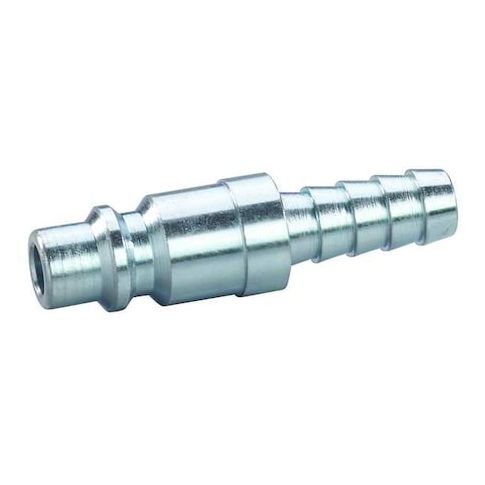

Quick Connect Hose Coupling, 1/4 in Body Size, 3/8in Hose Fitting Size, Plug, Male, 30E670 MPN:30E670

The SPEEDAIRE - 30E670 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment at the hose end or tool inlet. It features a male hose barb connection compatible with industrial interchange couplers and is suitable for use with air, fluid, or pneumatic lines, forming a sealed connection when properly installed. The coupling is constructed of steel with a zinc-plated finish and a Buna-N seal, rated for operation within a temperature range of -40°F to 150°F. It accommodates hoses with a 3/8 in inner diameter and has a body size and coupling size of 1/4 in, has a maximum working pressure rating of 300 psi (as specified: 300 psi @ 70°F) and has a maximum flow rate rating of 1,132.67 liters per minute.

Key Features:

• - Application: Used on end of hose or tool inlet
• - Hose barb connection type with a barb size of 3/8 in
• - Male hose fitting gender with a hose fitting size of 3/8 in
• - Body and coupling size: 1/4 in
• - Material: Steel with zinc-plated finish
• - Seal material: Buna-N
• - Maximum working pressure: 300 psi @ 70°F
• - Maximum flow rate: 1,132.67 lpm
• - Temperature range: -40°F to 150°F
• - Interchange type: Industrial
• - Does not include a valve
