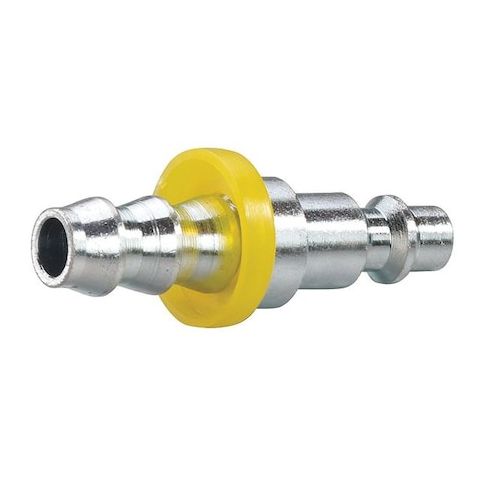

Coupler Plug, Push On, 1/4, Steel MPN:30E674
Free Shipping
In Stock
The SPEEDAIRE - 30E674 is a reliable and efficient quick connect hose coupling designed for industrial applications. It provides a sealed connection for fluid or air lines, reducing hose change time and increasing productivity. Compatible with ARO interchange couplers, this coupling is ideal for pneumatic and general-purpose applications where quick connection and disconnection are crucial. With a maximum working pressure of 300 psi and operating temperature range of -40°F to 150°F, it can handle a wide range of tasks. Perfect for use in manufacturing, construction, and maintenance industries, this coupling ensures smooth and reliable operation, reducing downtime and increasing efficiency.
Top product features:
- Provides a sealed connection for fluid or air lines
- Fits ARO interchange couplers with matching interchange specifications
- Has a maximum working pressure rating of 300 psi at 70°F
Top product applications:
- Pneumatic applications
- General-purpose applications
- Hose change applications
The SPEEDAIRE - 30E674 is a quick connect hose coupling designed for connection/disconnection between a hose end and a compatible tool inlet without requiring an integrated valve. It functions as a plug with a hose barb connection type, provides a sealed connection for fluid or air lines (based on the specified seal material and design). The coupling is compatible with ARO interchange couplers when used with matching interchange specifications and is intended for use in pneumatic and general-purpose applications where quick connection/disconnection may reduce hose change time.
Key Features:
- - Hose barb size and fitting size: 1/4 in, hose barb rated for 1/4 in hose inner diameter
- - Coupling size and body size: 1/4 in, rated for 1/4 in connections (specified coupling/body sizing)
- - Material: Steel with zinc-plated finish
- - Hose fitting gender: Male
- - Seal material: Buna-N seal material for pressure sealing per specified pressure rating
- - Maximum working pressure: maximum working pressure rating of 300 psi at 70°F
- - Maximum flow rate: maximum flow rate (per product specification) of 1,132.67 liters per minute
- - Operating temperature range: operating temperature range per product specification: -40°F to 150°F
- - Interchange type: Industrial
- - Does not include an integrated valve
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 0.60
- Package Height: 0.60
- Package Weight: 0.01
