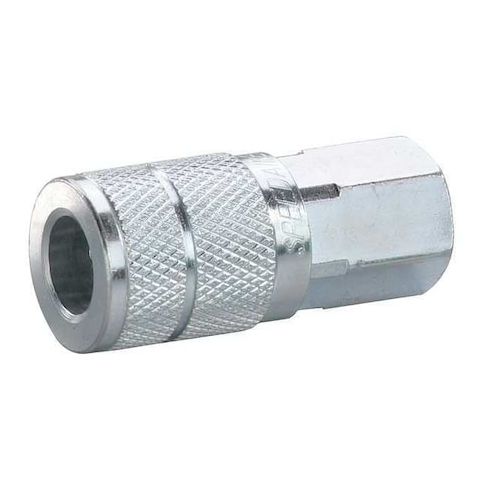

Coupler Body, (F)NPT, 3/8, Steel MPN:30E743

The SPEEDAIRE - 30E743 is a quick connect hose coupling intended for connection to compatible hose or air supply line fittings using the specified 3/8"-18 NPT female thread. It is designed for tool-free connection and disconnection using the sleeve locking mechanism and includes an integrated seal for fluid/air sealing. The coupling uses a sleeve locking mechanism and includes a poppet-type valve for controlling fluid/air flow. Compatible with specified standards/interchange type (Automotive Interchange Coupler / Tru-Flate-Automotive), when used with compatible fittings and within rated pressure/temperature limits.

Key Features:

• - Material: Steel construction with zinc-plated finish for surface protection.
• - Connection Type: Female 3/8"-18 NPT thread size.
• - Coupling Size/Body Size: 3/8 inch nominal diameter.
• - Seal Material: Nitrile seal material for sealing in compatible fluid/air applications (within rated pressure/temperature).
• - Includes Valve: Yes, poppet-type valve integrated into the coupling.
• - Operating Temperature Range: -40°F to 150°F.
• - Locking Method: Sleeve locking mechanism.
• - Maximum Working Pressure: 300 psi at 70°F.
• - Barbed: No barbed hose tail included.
