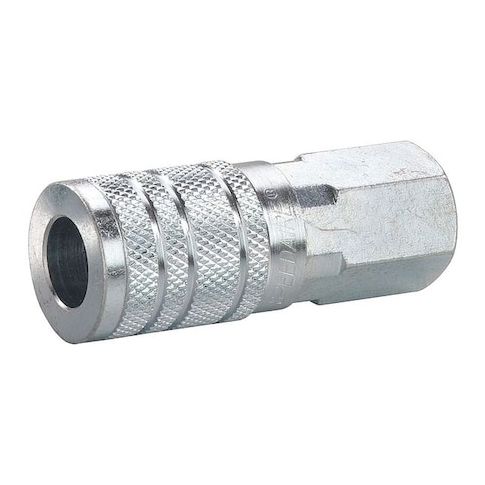

Quick Connect Hose Coupling, 1/2 in Body Size, 1/2 in Hose Fitting Size, Socket, 30E683 MPN:30E683
Free Shipping
In Stock
The Speedaire 30E683 Quick Connect Hose Coupling is a reliable and efficient solution for rapid connection and disconnection of hoses and air supply lines. Its sleeve locking mechanism ensures a secure fit, while the integrated poppet valve with nitrile seal provides a leak-free connection. Suitable for use on the end of a hose or air supply lines, this coupling is ideal for applications in industrial settings, such as manufacturing, construction, and maintenance. With a maximum flow rate of 1,840.6 liters per minute and a working pressure of 300 psi, this coupling is built to withstand demanding conditions and provide consistent performance.
Top product features:
- Rapid connection and disconnection via a sleeve locking mechanism.
- Integrated poppet valve with a nitrile seal for a secure connection.
- Maximum flow rate of 1,840.6 liters per minute.
Top product applications:
- End of hose connections
- Air supply lines
- Industrial applications
The SPEEDAIRE - 30E683 is a hose coupling with a sleeve locking mechanism for rapid connection and disconnection, designed for use on the end of a hose or air supply lines. This female fitting connects with industrial interchange plugs via a sleeve locking mechanism, facilitating connection and disconnection using the sleeve locking mechanism. Constructed from steel with a zinc-plated finish, it includes an integrated poppet valve with a nitrile seal, providing a connection sealed by the integrated poppet valve with a nitrile seal. The coupling features a 1/2 inch nominal size and thread (1/2"-14), maximum flow rate: 1,840.6 liters per minute (per specifications), and maximum working pressure: 300 psi at 70°F (per specifications), with a rated for operation within -40°F to 150°F (per specifications).
Key Features:
- - Material: Steel with zinc-plated finish.
- - Connection Type: 1/2" Female National Pipe Thread (NPT).
- - Coupling Size and Hose Fitting Size: 1/2 inch.
- - Locking Mechanism: Sleeve type for quick engagement and release.
- - Valve: Integrated poppet valve for flow control.
- - Seal Material: Nitrile.
- - Interchange Standard: Industrial.
- - Maximum Flow Rate: 1,840.6 liters per minute (per specifications).
- - Maximum Working Pressure: 300 psi at 70°F (per specifications).
- - Temperature Range: Rated for operation within -40°F to 150°F (per specifications).
- - Color: Silver.
- - Application: Suitable for end of hose or air supply connections.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 2.90
- Package Height: 3.30
- Package Weight: 5.00
