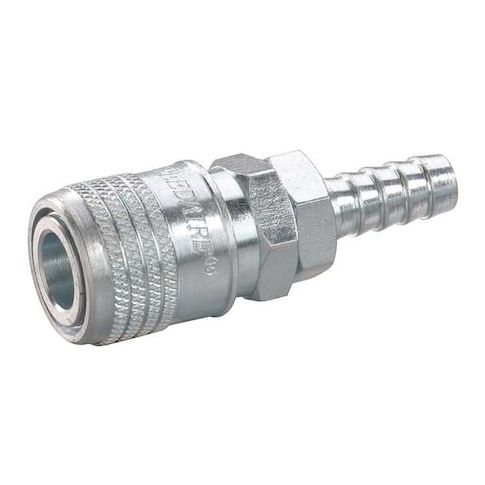

Quick Connect Hose Coupling, 1/4 in Body Size, 3/8 in Hose Fitting Size, Sleeve, Socket, 30E680 MPN:30E680
Free Shipping
In Stock
The Speedaire 30E680 Quick Connect Hose Coupling is a reliable and efficient solution for air supply and hose connection applications. This tool-free coupling provides a sealed connection with a sleeve locking mechanism, reducing leakage and ensuring a secure fit. Compatible with Industrial Interchange plugs, it's perfect for use in various industries such as manufacturing, construction, and maintenance. With a maximum flow rate of 991.09 liters per minute and a working pressure of 300 psi, it's ideal for high-pressure applications. Its durable construction and nitrile seal material ensure long-lasting performance in temperatures ranging from -40°F to 150°F.
Top product features:
- Push-to-connect/pull-to-disconnect operation provides tool-free use.
- The coupling uses a sleeve locking mechanism to provide a sealed connection, reducing leakage when properly connected.
- The product includes a poppet-type valve to control flow.
Top product applications:
- Air supply connection
- Hose connection
- Industrial air compressor applications
The SPEEDAIRE - 30E680 is a hose coupling rated for use on the end of a hose or air supply. It provides push-to-connect/pull-to-disconnect operation (tool-free use), using a sleeve locking mechanism, providing a sealed connection intended to reduce leakage when properly connected. This coupling is compatible with the Industrial Interchange standard, is compatible with industrial interchange plugs for mating via the Industrial Interchange standard.
Key Features:
- - Hose barb connection with a barb size of 3/8 in, compatible with hose inner diameter of 3/8 in.
- - Construction material: steel with a zinc plated finish.
- - Coupling size and body size rated at 1/4 in.
- - Includes a poppet-type valve to control flow.
- - Hose fitting gender is male.
- - Maximum flow rate of 991.09 liters per minute.
- - Maximum working pressure: 300 psi at 70°F (as specified).
- - Nitrile seal material.
- - Rated operating temperature range: -40°F to 150°F.
- - Rated for use with Industrial Interchange plugs
- intended for air supply and hose connection applications within the specified ratings.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 2.60
- Package Height: 3.30
- Package Weight: 2.30
