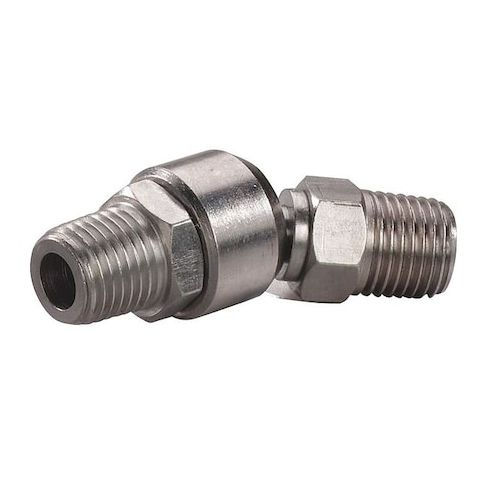

Swivel Connector, 1/4 MPN:30E593
Free Shipping
In Stock
The SPEEDAIRE 30E593 Swivel Connector is a reliable and versatile solution for pneumatic tool and tubing line connections. Its 360-degree ball-joint swivel design allows for smooth and effortless rotation, providing a 25° pivot angle for optimal flexibility. Ideal for use in various industries, including manufacturing, construction, and maintenance, this connector ensures a secure and air-tight seal even in extreme temperatures (-20°F to 150°F) and pressures (up to 150 psi). With its durable steel body and chrome-plated finish, this connector is built to withstand heavy use and harsh environments, making it a valuable addition to any toolbox or equipment setup.
Top product features:
- The connector allows the hose or attached tool to rotate freely relative to the fixed coupling, providing a 360° ball-joint swivel.
- The connector maintains an air-tight connection when installed using compatible fittings and rated within a maximum working pressure of 150 psi at 70°F.
- The connector features a steel body with a chrome-plated finish and NBR (nitrile rubber) seals.
Top product applications:
- Pneumatic tool connections
- Pneumatic tubing lines
- Air-powered equipment connections
The SPEEDAIRE - 30E593 is a swivel connector designed for use with pneumatic tools and tubing lines. It serves as a quick-connect hose fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. This rotation capability helps provide a 360° ball-joint swivel with a 25° pivot angle to allow relative rotation between the connected hose and coupling. The connector maintains an air-tight connection when installed using compatible fittings and rated within a maximum working pressure of 150 psi at 70°F within a temperature range of -20°F to 150°F.
Key Features:
- - Body size and thread size: 1/4"
- - Connection type: Male NPT inlet and outlet, both 1/4" NPT
- - Material: Steel body with chrome-plated finish
- - Seal material: NBR (nitrile rubber)
- - Swivel type: 360° ball-joint swivel with one pivot point and a 25° pivot angle
- - Overall length: 2.20 inches
- - Maximum working pressure at 70°F: 150 psi
- - Temperature rating: -20°F to 150°F operating range
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.50
- Package Height: 1.00
- Package Weight: 0.10
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
