Coupler Plug, (F)NPT, 3/8, Steel MPN:30E737
Free Shipping
In Stock

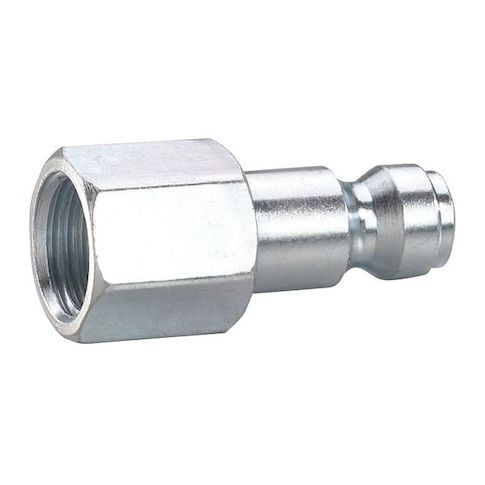

The SPEEDAIRE 30E737 Quick Connect Plug is a reliable and efficient solution for pneumatic and fluid line connections in automotive applications. With tool-free connection and disconnection, this plug provides a sealed interface and supports flow rates of up to 1,415.84 liters per minute. Constructed of steel with a zinc-plated finish, it offers corrosion resistance and can operate within a temperature range of -40°F to 150°F. Suitable for use on end of hose or tool inlet, this plug is ideal for applications requiring a quick and secure connection, such as in automotive repair shops, garages, and manufacturing facilities.
Top product features:
- Tool-free connection and disconnection capability
- Sealed interface for pneumatic and fluid lines
- Buna-N sealing material provides fluid-tight sealing within a temperature range of -40°F to 150°F
Top product applications:
- Used on end of hose
- Used on tool inlet
- Automotive interchange couplers
The SPEEDAIRE - 30E737 is a quick-connect hose coupling for tool-free connection and disconnection. It supports pneumatic and fluid lines by providing a sealed interface. The coupling is compatible with automotive interchange couplers and uses a Tru-Flate-Automotive interchange standard. Constructed of steel with a zinc-plated finish, this coupling is rated for flow up to 1,415.84 liters per minute and rated maximum working pressure: 300 psi at 70°F. Buna-N sealing material is rated for operation within a temperature range of -40°F to 150°F.
- - Coupling component type: Plug (male half of the quick-connect fitting)
- - Connection type: NPT thread with 1/4"-18 thread size
- - Hose fitting gender: Female
- - Hose fitting size: 1/4 in
- - Body and coupling size: 3/8 in nominal
- - Finish: Zinc plated for corrosion resistance
- - Seal material: Buna-N (nitrile) providing fluid-tight sealing
- - Maximum flow rate: 1,415.84 lpm
- - rated maximum working pressure: 300 psi @ 70°F
- - rated temperature range: -40°F to 150°F
- - Application: Used on end of hose or tool inlet
- - Does not include an integrated valve
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.60
- Package Height: 0.60
- Package Weight: 0.01
