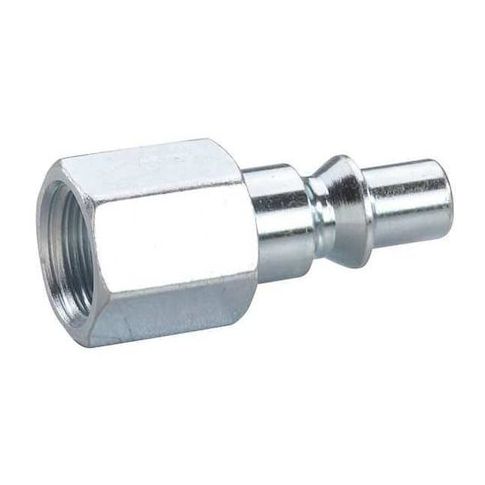

Coupler Plug, (F)NPT, 1/4, Steel MPN:30E717

• The SPEEDAIRE - 30E717 is a plug-type quick-connect hose coupling that allows connection and disconnection without requiring tools, based on the quick-connect design. It is used on the end of a hose or tool inlet and is compatible with ARO Interchange Coupler standard couplers. It is intended to provide a sealed connection when properly installed with the specified seal and compatible couplers.

  Key Features:


  • - Material: Steel with zinc-plated finish for corrosion resistance.
  • - Connection Type: 1/4" -18 NPT female thread.
  • - Hose Fitting Gender: Female.
  • - Coupling Size: 1/4 in
  • Body Size: 1/4 in.
  • - Seal Material: Buna-N (nitrile) O-ring for sealing.
  • - Maximum Flow Rate: 1,132.67 liters per minute.
  • - Maximum Working Pressure: 300 psi at 70°F.
  • - Operating Temperature Range: -40°F to 150°F.
  • - Barbed: No—smooth threaded connection.
  • - For use with: ARO Interchange Coupler standard couplers.
  • - Coupling Component: Plug type quick connect.
