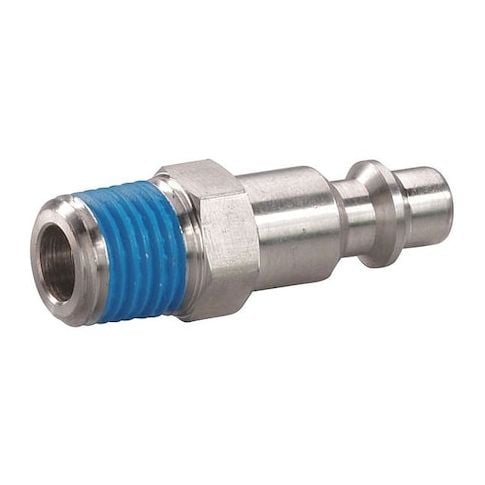

Quick Connect Hose Coupling, 1/4 in Body Size, 1/4 in Hose Fitting Size, Plug, Male, 30E548 MPN:30E548
Free Shipping
In Stock
Easily connect and disconnect hoses with the SPEEDAIRE 30E548 Quick Connect Hose Coupling. Designed for use with pneumatic and hydraulic fluid/air lines, this coupling features a push/pull locking mechanism and sealed connection to help prevent leakage. Made from 304 stainless steel, it operates within a temperature range of -40°F to 150°F and can withstand pressures up to 300 psi. Ideal for use in industrial settings, this coupling is compatible with ISO 6150 and MIL-C-4109F standards. Its compact size and easy installation make it a valuable addition to any workshop or facility, reducing downtime and increasing productivity.
Top product features:
- The coupling features a sealed connection intended to help prevent leakage when used within the specified operating pressure and temperature ranges.
- The coupling operates within a temperature range of -40°F to 150°F when used under specified pressure and installation conditions.
- The coupling is made from 304 stainless steel, providing durability and resistance to corrosion.
Top product applications:
- Hose coupling for pneumatic fluid lines
- Hose coupling for hydraulic fluid lines
- Tool inlet connection for pneumatic and hydraulic applications
The SPEEDAIRE - 30E548 is a quick connect hose coupling designed for hose coupling/un-coupling using a push/pull locking mechanism. It is configured for installation on the end of a hose or tool inlet using the specified connection type (NPT threading). This coupling features a sealed connection intended to help prevent leakage when used within the specified operating pressure and temperature ranges. The coupling is made from 304 stainless steel and finished plain with a silver color. It is compatible for use with pneumatic and hydraulic fluid/air lines when used within its specified pressure, temperature, and connection specifications.
Key Features:
- - Coupling Type: Plug with male hose fitting gender.
- - Connection Size: 1/4 in coupling size and hose fitting size with 1/4" -18 thread size.
- - Connection Type: NPT threading standard.
- - Maximum flow rate: 1,132.67 L/min (based on manufacturer testing/conditions, where applicable).
- - Maximum working pressure: 300 psi at 70°F ambient temperature.
- - Seal Material: Buna-N elastomer.
- - Operates within a temperature range of -40°F to 150°F (when used under specified pressure and installation conditions).
- - Interchange Type: Industrial standard compatible.
- - Complies with ISO 6150 and MIL-C-4109F (as stated by the manufacturer).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.91
- Package Width: 5.51
- Package Height: 3.94
- Package Weight: 2.85
