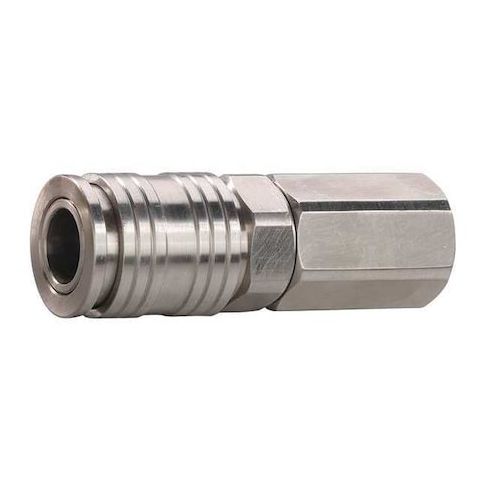

Coupler Body, (F)NPT, 1/4, 304 SS MPN:30E538
Free Shipping
In Stock
The Speedaire Quick Connect Hose Coupling Socket is a reliable and efficient solution for pneumatic and hydraulic applications. Designed for use on the end of a hose or air supply line, it features a push-to-connect locking mechanism for easy connection and disconnection. Constructed from 304 stainless steel, it offers a maximum flow rate of 991.09 liters per minute and is rated for 400 psi at 70°F. Perfect for use in industrial, automotive, and ARO applications, this coupling provides leak-resistant connections, flow control, and a long-lasting finish. Its compact size and versatility make it an ideal choice for a variety of applications.
Top product features:
- Push-to-connect locking mechanism for secure connection and disconnection
- Integrated poppet valve for flow control when connected or disconnected
- 304 stainless steel construction for corrosion resistance and durability
Top product applications:
- Pneumatic applications
- Hydraulic hose coupling applications
- Automotive applications
The SPEEDAIRE - 30E538 is a hose coupling designed for use on the end of a hose or air supply line. It supports push-to-connect connection and disconnection through a push-to-connect locking mechanism, and is compatible with sealed connections when installed using the specified hose/coupling fittings and seal materials. The coupling is compatible with ARO, industrial, and automotive plug types and includes an integrated poppet valve for flow control when connected or disconnected. Constructed from 304 stainless steel, it offers a maximum flow rate of 991.09 liters per minute and is rated for a maximum working pressure of 400 psi at 70°F. This product is intended for use in pneumatic and hydraulic hose coupling applications within the specified operating parameters (including temperature range and rated pressure).
Key Features:
- - Body and coupling size: 1/4 in
- - Hose fitting size: 3/8 in female connection with 3/8"-18 thread size
- - Connection type: NPT thread standard
- - Coupling component: socket type
- - Locking type: push-to-connect
- - Material: 304 stainless steel construction
- - Seal material: nitrile used for leak-resistant connections
- - Includes integrated poppet valve for flow control when connected or disconnected
- - Finish: plain stainless steel surface
- - Interchange type: is compatible with ARO, industrial, and automotive plug types (as specified)
- - Operating temperature range: -40°F to 200°F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.30
