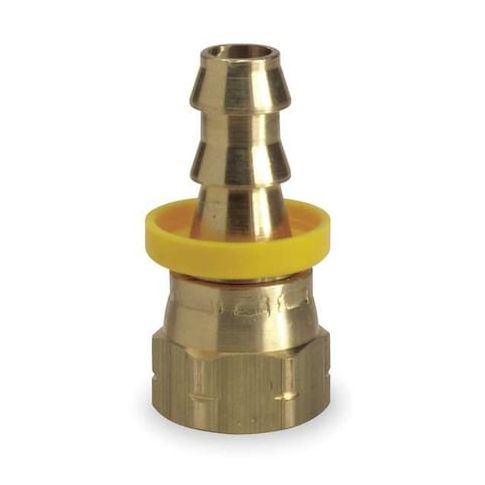

Hose Fitting, 1/2 In. ID, 3/4"-16 UNF MPN:5A248

The SPEEDAIRE - 5A248 is a Push-On Hose Fitting, essential for connecting, routing, or terminating hose lines in different industrial and commercial applications. Crafted from sturdy Brass material, the fitting remains rigid in operation and is designed to smoothly engage with hoses. With fitting connections of types JIC x Hose Barb, the adapters are built to offer a straightforward swivel style connection, with female and male genders respectively. The fitting size of this tool is specified to be 3/4 in x 1/2 in, making it an ideal fit for hoses with an internal diameter of 1/2 in. A distinguishing feature of this tool is its ability to withstand a maximum working pressure of 250 psi at 70°F, which underlines its high resilience.

Key Features:

• Barb Size: 1/2 in, denoting the outer diameter of the pipe.
• Fitting Shape: Straight, explaining the hose line does not change flow direction.
• Fitting Material: Brass x Brass, stating the constituent materials for the fitting components.
• Hex Head Size: 55/64 in, specifying the wrench or socket size needed for the fitting.
• Hose Fitting sizes: A size = 3/4 in (female) and B size = 1/2 in (male), describing the compatible sizes for connection.
• Material Grade: H59, indicating the quality and strength of the brass material used.
• Reusable: Yes, signifying the fitting can be reused after the initial installation.
• Thread Size: 3/4"-16 UNF with a female SAE type, stipulating the dimensions and form of the screw threads for the joint connections.
