3-in-1 Air Compressor/Generator/Welder, 22hp, Gasonline, 5000 Watt, 20 Gal air (AGW-SH22-20G) MPN:AGW-SH22-20G

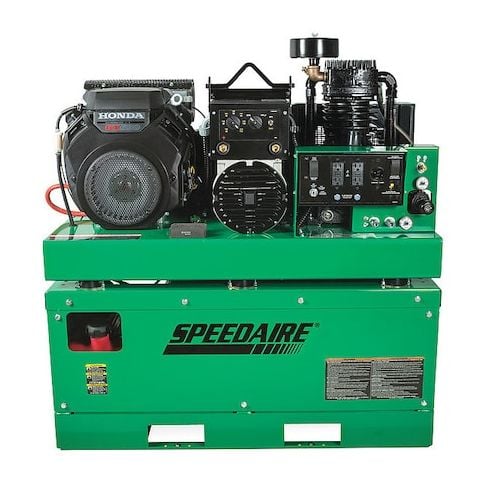

• The SPEEDAIRE AGW-SH22-20G Stationary Air Compressor/Generator/Welder is a three-function unit designed to supply compressed air, electric power, and welding capability from a single gas-powered system. It is equipped with a 22 hp Honda gasoline engine and a two-stage, oil-lubricated reciprocating pump that delivers 30.5 cfm at 90 psi and up to 175 psi maximum pressure. The integrated generator produces 4,500 rated watts (5,000 maximum), while the welder provides an output range of 50 to 220 amps. The system features electric start, low-oil shutdown, and a horizontal 20-gallon ASME tank for stable performance.

  Key Features:

  • - Function: Integrated air compressor, generator, and welder
  • - Engine: 22 hp Honda gasoline engine with electric start
  • - Air Delivery: 30.5 cfm at 90 psi
  • 29 cfm at max 175 psi
  • - Air Tank Capacity: 20-gallon horizontal ASME tank
  • - Pump Type: Two-stage reciprocating, oil-lubricated piston pump
  • - Generator Output: 4,500 rated watts / 5,000 maximum watts
  • - Welder Output Range: 50–220 amps
  • - Fuel Capacity: 10 gal
  • run time up to 18 hr at half load
  • - Sound Level: 85 dB
  • - Pressure Rating: 175 psi maximum
  • - Lubrication: Oil-lubricated system with cast iron sleeves
  • - Dimensions: 47 in L × 24 in W × 47.5 in H
  • weight 803 lb
  • - Includes: Welding cables
  • - Mobility: Stationary design
