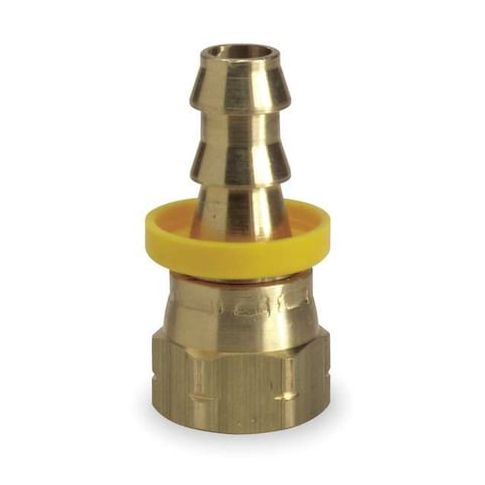

Hose Fitting, 1/4 In. ID, 7/16"-20 UNF MPN:5A247

• The SPEEDAIRE - 5A247 is a Push-On Hose Fitting designed for use in industrial and commercial applications. With a standard Barb Size of 1/4 in and Fitting Size of 7/16 in x 1/4 in, this fitting is designed to maintain a rigid form and straight shape. Primarily made of Brass, a material with notable durability and resistance to corrosion, it's a fitting that's built to last. It's rated for a maximum operating pressure of 250 psi.

  Key Features:

  • Fitting Connection Type: JIC x Hose Barb, illustrating the method of attaching this fitting to a hose.
  • Fitting Material: Brass x Brass, denoting the two section components made of brass.
  • Fitting Shape: Straight, in reference to its linear design that doesn't alter the direction of flow.
  • Fitting Size: 7/16 in x 1/4 in, indicating dimensions of the fitting's connecting ends.
  • Hex Head Size: 35/64 in, specifying the wrench or socket size needed for adjustments.
  • Hose Fitting A: Female JIC of size 7/16 in
  • Hose Fitting B: Male Hose Barb of size 1/4 in.
  • Reusable attribute, indicating potential for multiple uses.
  • Thread Size: 7/16"-20 UNF, detailing size and type of threading for connections.
  • Thread Type: Female SAE, pointing to the type of threaded connection.
