Hose Fitting, 3/8 In. ID, 5/8"-18 UNF MPN:5A246

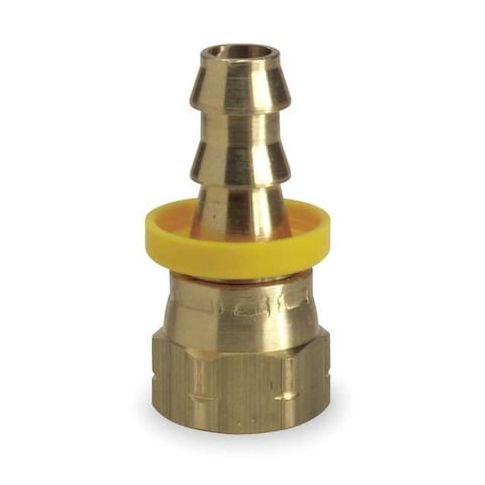

• The SPEEDAIRE - 5A246 is a push-on hose fitting that falls within the industrial and commercial tools category. This fitting exhibits a straight swivel style, comprised primarily of Brass x Brass. With a barb size of 3/8 in, it is designed for a hose inside diameter (I.D.) of 3/8 in. The fitting possesses distinct male and female elements concerning hose fitting connection types

• Hose Fitting A showcases a male hose barb connection, while Hose Fitting B highlights a female inverted flare connection. Its straight geometric configuration provides efficient routing, joining or ending of hose lines. This push-on hose fitting has a maximum working pressure of 250 psi at 70 F, indicating the utmost pressure it can withstand during normal operations.

  Key Features:

  • - Barb Size: 3/8 in, the barbed end is ready for application with a 3/8 in hose I.D.
  • - Fitting Material: Made of Brass x Brass, providing suitable resistance to corrosion and wear.
  • - Fitting Shape: Straight, indicating a direct route for the alignment of the hose lines.
  • - Fitting Size: 3/8 in x 5/8 in, compatible with both 3/8 in and 5/8 in hose sizes.
  • - Hex Head Size: 3/4 in, dictating the size of wrench or socket needed for adjustment.
  • - Hose Fitting Connection Types: A combination of male Hose Barb and female Inverted Flare, offering varied connection methods.
  • - Maximum Working Pressure: Rated to withstand a pressure range of up to 250 psi at 70 F.
  • - Material Grade: Graded H59, indicating a specific alloy standard for its brass construction.
  • - Reusability: Yes, suggesting that the product can be used multiple times.
  • - Thread Type: Female SAE, with a size of 5/8"-18 UNF, signifying interoperability with standard SAE threaded components.

  This listing is a simplified statement of the features and does not determine the totality of product quality or compliance with specific standards or specifications. The product's usage and safety should always be in accordance with official guidelines and legal provisions.
