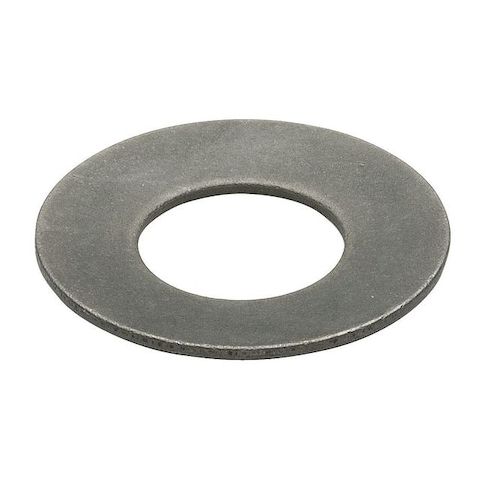

Disc Spring, SS, I.D. 1.22 In, PK10 MPN:BD0632500310S
Disc Spring, SS, I.D. 1.22 In, PK10
This stainless steel disc spring is designed for high-load applications, providing a calculated load at flat of 10197N and a load at deflection of 6064N. Its compact size, with a minimum inside diameter of 1.22 inches and a maximum outside diameter of 2.48 inches, makes it ideal for use in tight spaces. The disc spring's ability to withstand significant deflection of 1.09mm while maintaining its structural integrity makes it suitable for use in various industries, including aerospace, automotive, and medical devices, where precision and reliability are crucial.
Top product features:
- Meets/Exceeds DIN 2093
- Load @ Deflection (Lbs.) 6064N
- Calculated Load @ Flat (Lbs.) 10197N
Top product applications:
- Vibration isolation in industrial equipment
- Suspension systems in heavy machinery
- High-load applications in aerospace engineering
Disc Spring,Metric Disc Spring,Stainless Steel,Finish Plain,Min. Inside Dia. 1.22 In.,Max. Outside Dia. 2.480 In.,Thickness 2.5mm,Overall Height 3.95mm,Load @ Deflection (Lbs.) 6064N,Deflection @ Load 1.09mm,Calculated Load @ Flat (Lbs.) 10197N,Meets/Exceeds DIN 2093,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 2
- Unit of Measure: PK
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 1.20
- Package Weight: 0.50
Product info last updated on January 19, 2026 11:12pm UTC
Category: Springs
