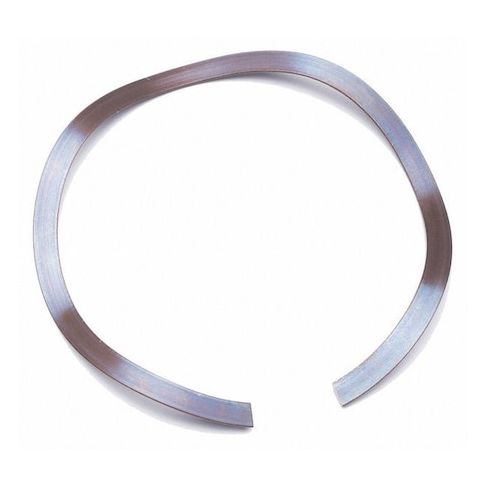

Disc Spring, Split Wave Springs, PK10 MPN:WWMG09915206
Disc Spring, Split Wave Springs, PK10
This high-carbon steel Disc Spring, also known as a Split Wave Spring, is designed for heavy-duty applications. Its compact size and high load capacity make it ideal for use in rod-based systems, such as hydraulic and pneumatic cylinders. With a minimum inside diameter of 0.093 inches and a maximum outside diameter of 7.48 inches, it can be used in a variety of applications, including industrial equipment, machinery, and automotive systems. Its high deflection and load capacity make it a reliable choice for applications where high stress is present. It meets or exceeds industry standards for quality and performance.
Top product features:
- High Carbon Steel construction for durability and strength
- Meets/Exceeds SWRH72A and GB4357-B standards for quality and reliability
- Deflects up to 9.91mm under load for precise control and regulation
Top product applications:
- Automotive Suspension Systems
- Industrial Equipment Mounting
- Aerospace Component Isolation
Disc Spring,Split Wave Springs,High Carbon Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 190.0mm,Thickness 0.81mm,Overall Height 4.0mm,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 9.91mm,Meets/Exceeds SWRH72A, GB4357-B,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 2
- Unit of Measure: PK
- Package Length: 7.48
- Package Width: 0.15
- Package Height: 7.48
- Package Weight: 1.03
Product info last updated on February 8, 2026 2:24pm UTC
Category: Springs
