Disc Spring, Split Wave Springs, PK10 MPN:WWMG06866853S

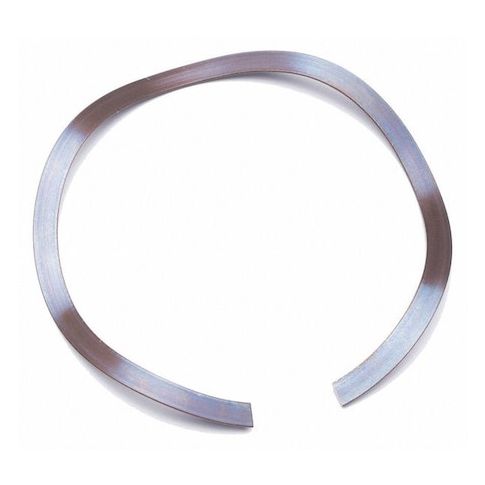

Disc Spring, Split Wave Springs, PK10
This high-performance Disc Spring, also known as a Split Wave Spring, is designed for precise applications where a high load-to-deflection ratio is required. Made from corrosion-resistant 17-7 PH stainless steel, it excels in harsh environments. With a minimum inside diameter of 0.093 inches and a maximum outside diameter of 0.183 inches, it is ideal for rod sizes up to 5/16 inches. This spring offers a deflection of 6.86mm, making it suitable for applications in the aerospace, automotive, and industrial sectors, such as suspension systems, valve actuators, and precision machinery. Its compact size and high load capacity make it an excellent choice.
Top product features:
- Split wave design for increased flexibility and load capacity
- Stainless steel construction for corrosion resistance and durability
- Deflection of 6.86mm at a specific load for controlled movement and stability
Top product applications:
- Vibration isolation in sensitive equipment
- Motion control systems
- Precision engineering applications
Disc Spring,Split Wave Springs,Stainless Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 0.183 In.,Thickness 0.81mm,Overall Height 4.0mm,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 6.86mm,Meets/Exceeds 17-7 PH Condition C, CH-900 AMS-5529,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 9.84
- Package Width: 0.15
- Package Height: 9.84
- Package Weight: 1.37
Product info last updated on March 13, 2026 8:24pm UTC
Category: Springs
