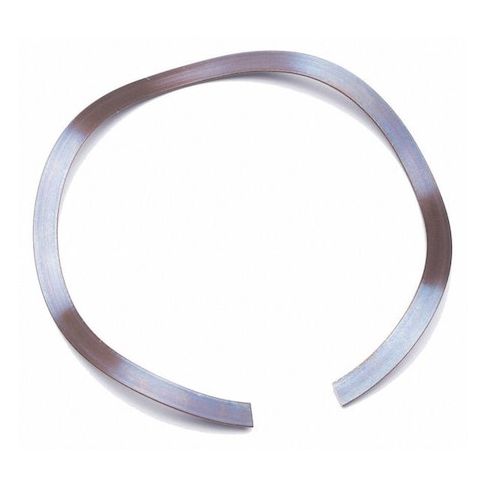

Disc Spring, Split Wave Springs, PK10 MPN:WWG1500035030
Disc Spring, Split Wave Springs, PK10
This high-carbon steel Disc Spring, also known as a Split Wave Spring, offers precise load and deflection control in a compact design. With a minimum inside diameter of 0.093 in. and a maximum outside diameter of 15 in., it's suitable for a wide range of applications, including industrial machinery, automotive, and aerospace. Its deflection of 0.156 in. at a specific load makes it ideal for use in devices requiring precise motion control. The spring's high carbon steel construction ensures durability and resistance to wear and tear, making it a reliable choice for demanding applications.
Top product features:
- High Carbon Steel construction for durability and strength
- Split Wave design for increased flexibility and load capacity
- Meets/Exceeds SWRH72A and GB4357-B standards for performance and reliability
Top product applications:
- Clamp and Hold Applications
- Pneumatic and Hydraulic Cylinder Cushioning
- Shock Absorption in Mechanical Systems
Disc Spring,Split Wave Springs,High Carbon Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 15.000 In.,Thickness 0.032 In.,Overall Height 0.350 In.,For Hole Size 0.1875,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 0.156 In.,Meets/Exceeds SWRH72A, GB4357-B,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 15.00
- Package Width: 0.35
- Package Height: 15.00
- Package Weight: 2.25
Product info last updated on February 1, 2026 10:10pm UTC
Category: Springs
