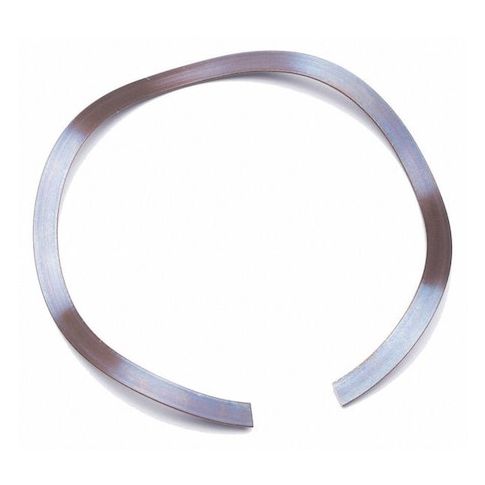

Disc Spring, Split Wave Springs, PK10 MPN:WWG0325020054S
Disc Spring, Split Wave Springs, PK10
This stainless steel disc spring, also known as a split wave spring, is designed for applications requiring high load capacity and resistance to corrosion. With a minimum inside diameter of 0.093 inches and a maximum outside diameter of 3.25 inches, it can be used to support rods of 5/16 inches in size. The spring's deflection of 0.109 inches at a load of NA pounds makes it suitable for a variety of applications, including those in the aerospace and medical industries. Its compact size and durability make it an ideal component for use in tight spaces and demanding environments.
Top product features:
- Stainless steel construction for corrosion resistance
- Split wave design for flexibility and adaptability
- Meets/exceeds 17-7 PH Condition C for high-performance applications
Top product applications:
- Valve Springs
- Bearing Preload Springs
- Pneumatic Cylinders
Disc Spring,Split Wave Springs,Stainless Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 3.250 In.,Thickness 0.030 In.,Overall Height 0.200 In.,For Hole Size 0.1875,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 0.109 In.,Meets/Exceeds 17-7 PH Condition C, CH-900 AMS-5529,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 4
- Unit of Measure: PK
- Package Length: 3.25
- Package Width: 0.20
- Package Height: 3.25
- Package Weight: 0.28
Product info last updated on February 27, 2026 8:41am UTC
Category: Springs
