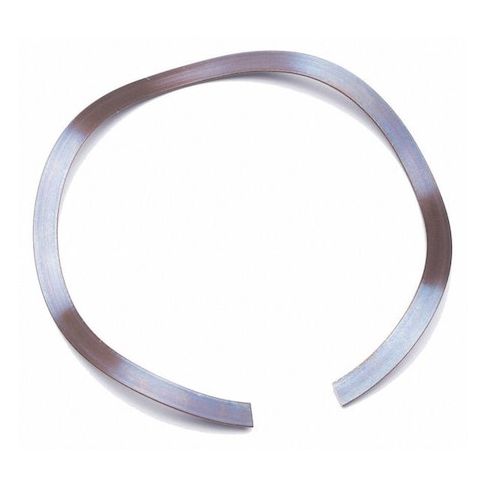

Disc Spring, Split Wave Springs, PK10 MPN:WWG0337022056S
Disc Spring, Split Wave Springs, PK10
This high-performance Disc Spring, also known as a Split Wave Spring, is engineered for precision and durability. Made from 17-7 PH Stainless Steel, it meets or exceeds Condition C, CH-900 AMS-5529 standards. Suitable for rod sizes 5/16 inches, it offers a deflection of 0.109 inches at a load, making it ideal for applications requiring high flexibility and load-bearing capacity. Its compact size, with a minimum inside diameter of 0.093 inches and a maximum outside diameter of 0.183 inches, allows for precise fitment in tight spaces. Perfect for use in aerospace, medical, and industrial applications where reliability and performance are paramount.
Top product features:
- Split wave design for increased flexibility and load distribution
- Stainless steel construction for corrosion resistance and durability
- Deflects to 0.109 inches under load for precise rod movement control
Top product applications:
- Valve spring replacements in aerospace and industrial applications
- Sealing and vibration dampening in hydraulic cylinder systems
- Precision load-bearing components in medical devices and equipment
Disc Spring,Split Wave Springs,Stainless Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 0.183 In.,Thickness 0.030 In.,Overall Height 0.220 In.,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 0.109 In.,Meets/Exceeds 17-7 PH Condition C, CH-900 AMS-5529,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 3
- Unit of Measure: PK
- Package Length: 3.38
- Package Width: 0.22
- Package Height: 3.38
- Package Weight: 0.27
