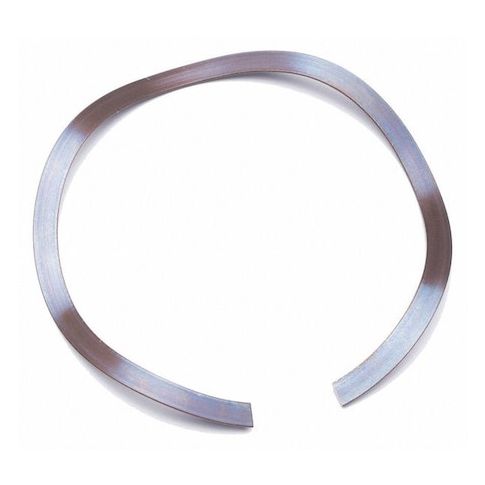

Disc Spring, Split Wave Springs, PK10 MPN:WWG0175014030S
Disc Spring, Split Wave Springs, PK10
This disc spring, also known as a split wave spring, is a stainless steel component designed for precise applications. Its compact size and low profile make it ideal for use in tight spaces, while its high strength and durability ensure reliable performance. With a minimum inside diameter of 0.093 inches and a maximum outside diameter of 1.750 inches, this disc spring is suitable for rod sizes up to 5/16 inches. Its deflection capabilities and load-bearing properties make it a versatile component for various industries, including aerospace, industrial, and medical applications, where precision and reliability are critical.
Top product features:
- Split wave design allows for a high degree of flexibility and deflection.
- The stainless steel construction provides resistance to corrosion and wear.
- The disc spring design enables a high load capacity with a relatively small deflection.
Top product applications:
- Spring Assisted Hinges
- Valve Spring Components
- Pneumatic Cylinders
Disc Spring,Split Wave Springs,Stainless Steel,Finish Plain,Min. Inside Dia. 0.093 In.,Max. Outside Dia. 1.750 In.,Thickness 0.018 In.,Overall Height 0.140 In.,For Rod Size 5/16 In.,Load @ Deflection (Lbs.) NA,Deflection @ Load 0.078 In.,Meets/Exceeds 17-7 PH Condition C and CH-900 AMS-5529,Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 9
- Unit of Measure: PK
- Package Length: 1.75
- Package Width: 0.14
- Package Height: 1.75
- Package Weight: 0.05
Product info last updated on March 4, 2026 12:30pm UTC
Category: Springs
