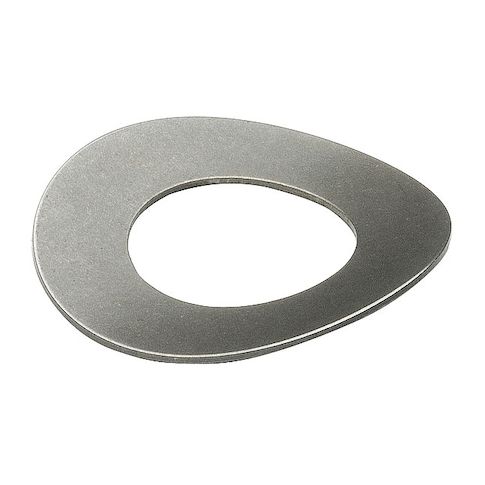

Disc Spring, 0.216, Steel, Curved, PK25 MPN:U2160120
Disc Spring, 0.216, Steel, Curved, PK25
The Curved Disc Spring is a versatile and reliable component designed to provide consistent load-deflection characteristics in a compact, curved design. Suitable for use in a variety of applications, including mechanical linkages, vibration isolation, and spring-loaded mechanisms, this component offers a high load capacity while maintaining a low profile. With a minimum inside diameter of 0.231 inches and a maximum outside diameter of 0.49 inches, the Curved Disc Spring is ideal for use in precision machinery, aerospace, and other industries where space is limited and high performance is required. Its durability and reliability make it a valuable addition to any system.
Top product features:
- Curved design allows for increased flexibility and adaptability in applications.
- Provides a load capacity of 10 pounds at a specific deflection point.
- Has a minimum inside diameter of 0.231 inches and a maximum outside diameter of 0.49 inches.
Top product applications:
- Disc springs are used in applications requiring a high spring rate and a compact design, such as
- Clamping and holding applications
- High-precision machinery and equipment
Disc Spring, Curved Spring Washer, Carbon Steel, Finish Plain, Min. Inside Dia. 0.231 In, Max. Outside Dia. 0.49 In, Thickness 0.012 In, Overall Height 0.057 In, Load at Deflection 10 Lbs., Deflection at Load 0.025 In, Package Quantity 10
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 9
- Unit of Measure: PK
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.28
- Package Weight: 0.30
Product info last updated on April 5, 2026 3:12pm UTC
Category: Springs
