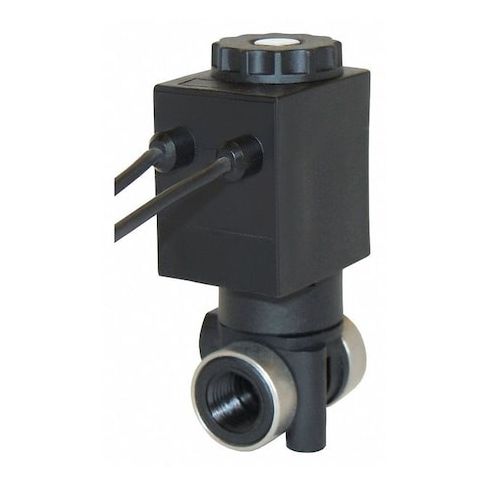

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120VAC, Direct Acting, Buna N MPN:3827-B60-AA87B
Free Shipping
In Stock
The Spartan Scientific 3827-B60-AA87B is a reliable and versatile 2-way, 2-position normally closed solenoid valve designed for use with air, caustics, light oil, and water in various industrial applications. Its direct-acting operation and compact design make it ideal for controlling fluid flow in tight spaces. With a 1/8-inch nominal pipe size and NPT threaded connections, this valve is perfect for laboratory, medical, and process control settings. Its IP65 and NEMA 4 enclosure ratings ensure durability in harsh environments, while its Buna N seal material provides long-lasting performance. This valve is CE certified and ships in 1 day.
Top product features:
- 2-way, 2-position normally closed solenoid valve operation
- Direct-acting operation method
- Buna N seal material
Top product applications:
- Air supply systems
- Caustic chemical processing systems
- Water treatment systems
The SPARTAN SCIENTIFIC 3827-B60-AA87B is a 2-way, 2-position normally closed solenoid valve intended for use with air, caustics, light oil, and water within the listed operating pressure and temperature ranges. It features a direct-acting operation method with a straight valve body style and is constructed from glass-filled nylon. The valve controls the flow of air, caustics, light oil, and water through a 1/8-inch nominal pipe size inlet and outlet, both with NPT threaded connections. It includes a coil and sealing components for installation and coil enclosure rated IP65 and NEMA 4.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Body Material: Glass Filled Nylon
- - Connection Types: NPT inlet and outlet
- - Orifice Diameter: 5/64 inch
- - Nominal Pipe Size: 1/8 inch
- - Coil Included: Yes, with wire leads electrical connections
- - Coil Insulation Class: F
- - Wattage: 6.5 W
- - Media Compatibility: Air, Caustics, Light Oil, Water
- - Operating Pressure Differential Maximum: 200 psi for Air/Inert Gas, Light Oil, and Water
- - Ambient Temperature Range: 50°F to 122°F
- - Fluid Temperature Maximum: 194°F
- - Seal Material: Buna N
- - Outdoor use is supported by IP65 and NEMA 4 enclosure ratings
- - Dimensions: Overall Height 2-13/32 in, Length 1-3/32 in, Width 1-3/32 in
- - Standards: CE Certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.94
- Package Width: 1.25
- Package Height: 2.88
- Package Weight: 0.20
