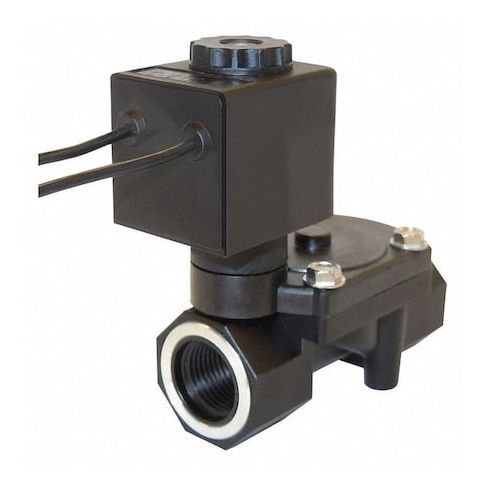

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24V AC, Remote Pilot, EPDM MPN:3585-030-9236B
Free Shipping
In Stock
The Spartan Scientific 3585-030-9236B solenoid valve is a reliable and versatile solution for a variety of applications. Suitable for use with air and water, this 2-way, 2-position valve features a remote pilot design and is constructed with durable glass-filled nylon and EPDM seals. Its compact size and NPT connections make it easy to integrate into existing systems. With a wide operating temperature range and high pressure rating, this valve is ideal for general-purpose applications in industries such as plumbing, HVAC, and water treatment. Its CE certification ensures compliance with European safety standards.
Top product features:
- Diaphragm design for improved durability and resistance to corrosion
- Pilot operated internal pilot actuator type for precise control and reliable operation
- Watertight and dust-tight coil enclosure for protection against environmental factors
Top product applications:
- General Purpose
- Air
- Water
The SPARTAN SCIENTIFIC 3585-030-9236B is a normally closed, 2-way solenoid valve with a diaphragm design and pilot operated internal pilot actuator type. It features a remote pilot valve type with a straight valve body style and a valve orifice diameter of 1/2 inch. Constructed with a glass-filled nylon body and EPDM seals, it includes a solenoid coil and seal components for operation. Application: General Purpose
- Media: Air, Water. The valve operates within an ambient temperature range of 50 to 122°F and handles fluid temperatures up to 140°F. It supports an inlet and outlet connection type of NPT with a nominal pipe size of 1/2 inch.
Key Features:
- - Valve Design: Diaphragm, 2-Way, 2-Position, Normally Closed
- - Valve Type: Remote Pilot, Pilot Operated
- - Body Material: Glass Filled Nylon
- Seal Material: EPDM
- - Operating Pressure Differential: Minimum 7 psi
- Maximum 150 psi for Air/Inert Gas, Light Oil, and Water
- - Electrical: 24V AC voltage, 6.5 W wattage, 60 Hz frequency, Coil Insulation Class F
- - Coil Enclosure: Watertight, Dust Tight
- Electrical Connections: Wire Leads
- - Environmental Rating: Outdoor
- IP Rating: IP65
- NEMA Enclosure Rating: 4
- - Includes: Solenoid Coil and Seal
- - Dimensions: Overall Height 3-3/16 in, Overall Length 2-23/32 in, Overall Width 1-1/2 in
- - Thread Type: NPT, Inlet and Outlet Connection Type: NPT
- - Application: General Purpose
- Media: Air, Water
- - Standards: CE Certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.50
