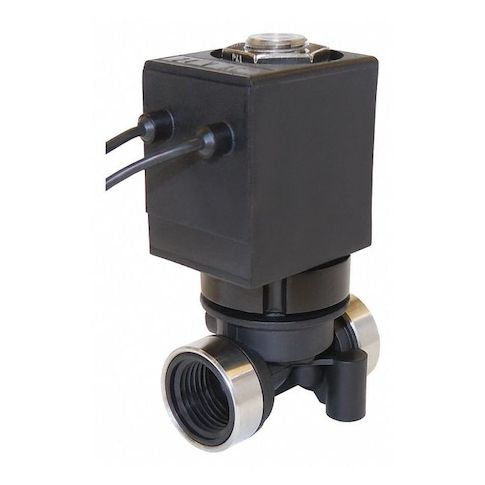

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 12V DC, Poppet, Direct Acting MPN:6200-E70-AAC2B

• The SPARTAN SCIENTIFIC 6200-E70-AAC2B is a 2-way, 2-position direct-acting solenoid valve with a normally closed poppet design. It provides automated control of fluid or gas flow by using an energized coil to actuate a plunger that opens or closes the valve path. This valve is constructed with a glass-filled nylon body. Seals: EPDM

• media compatibility depends on fluid (consult compatibility data). It operates at 12V DC with a coil power consumption of 10 watts and includes the coil and sealing components in the assembly.

  Key Features:

  • - Valve Type: Poppet, 2-Way, 2-Position, Normally Closed
  • - Body Material: Glass Filled Nylon with EPDM seals
  • - Operating Voltage: 12 V DC, 10 W coil power
  • - Included Components: Coil and seal included
  • - Connection Types: NPT inlet and outlet with nominal pipe size 3/8 in
  • - Flow Coefficient (Cv): 0.61
  • - Orifice Diameter: 13/64 in
  • - Operating Pressure Differential: 0 to 50 psi for air/inert gas, light oil, and water
  • - Temperature Ratings: Ambient 50°F to 122°F
  • fluid up to 140°F
  • - Coil Enclosure: Watertight, Dust Tight with Class F insulation
  • - Electrical Connections: Wire Leads
  • - Dimensions: Overall length 1-13/16 in
  • width 1-15/32 in
  • height 3-7/32 in
  • - Certifications: CE certified
  • - NEMA Enclosure Rating: 4
