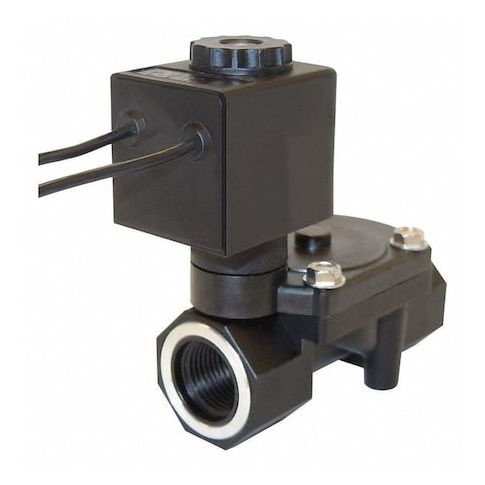

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 12V DC, Remote Pilot, EPDM MPN:3585-030-9222B

• The SPARTAN SCIENTIFIC 3585-030-9222B is a pilot-operated, normally closed solenoid valve compatible with air and water (as specified)

• no broader general-use claim. It features a diaphragm valve design with a 2-way, 2-position configuration, providing controlled opening and closing of fluid pathways. The valve body is made from glass filled nylon, and it includes an internal pilot actuator type. Environmental rating: Outdoor use
• IP65 and NEMA 4 enclosure ratings. Ambient operating temperature range: 50°F to 122°F. Maximum fluid temperature: 194°F.

  Key Features:

  • - Valve Type: Remote Pilot, Pilot Operated
  • - Valve Configuration: 2-Way, 2-Position, Diaphragm design
  • - Material: Glass Filled Nylon valve body with EPDM seals
  • - Connections: Inlet and Outlet NPT thread type, 3/8 in nominal pipe size
  • - Operating Pressure Differential: Minimum 10 psi
  • Maximum 150 psi for air, light oil, and water
  • - Orifice Diameter: 1/2 in
  • - Electrical: 12V DC voltage, 6.5 W power consumption, 60 Hz frequency, wire lead connections
  • - Coil: Included with Watertight, Dust Tight enclosure and Class F insulation
  • - Environmental Rating: Outdoor use
  • IP65 and NEMA 4 enclosure ratings
  • - Dimensions: Overall Length 2-23/32 in, Width 1-1/2 in, Height 3-3/16 in
  • - Flow Capacity: Cv of 1.95
  • - Certifications: CE standard
