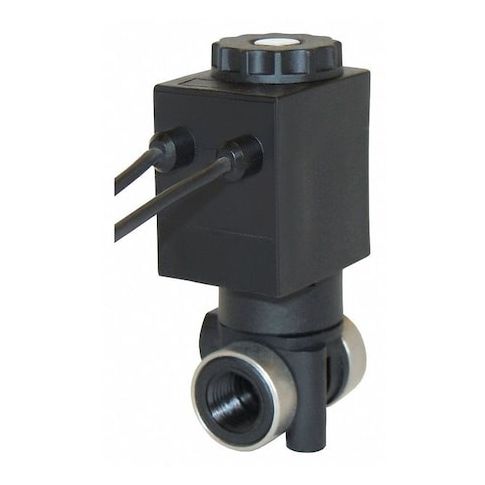

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24VAC, Direct Acting, Buna N MPN:3827-B60-AA86B

• The SPARTAN SCIENTIFIC 3827-B60-AA86B is a normally closed, 2-way/2-position solenoid valve with direct acting operation. It utilizes a 5/64 inch orifice diameter to control the flow of fluids including air, water, and light oil. The valve body is constructed from glass filled nylon and features Buna N seals. It includes the solenoid coil, which has a wire lead electrical connection and a coil insulation class F. The valve is rated for a maximum fluid temperature of 194°F and can operate within an ambient temperature range of 50°F to 122°F. It features NPT inlet and outlet connections with a 1/8 inch nominal pipe size.

  Key Features:

  • - Valve Type: Normally closed, 2-way/2-position, direct acting
  • - Material: Glass filled nylon body with Buna N seals
  • - Orifice Diameter: 5/64 inch
  • - Operating Pressure: 0 to 200 psi differential for air, water, and light oil
  • - Electrical: 24 VAC coil voltage, 6.5 W power consumption, wire leads connection
  • - Coil Enclosure: Watertight, dust tight
  • Coil insulation class F
  • - Environmental Rating: IP65 ingress protection rating and NEMA 4 enclosure ratings, suitable for outdoor environments
  • - Temperature Ratings: Ambient 50 to 122°F
  • fluid up to 194°F
  • - Includes: Solenoid coil and seals
  • - Dimensions: Approximately 2-13/32 in height, 1-3/32 in width and length
  • - Thread Type: NPT inlet and outlet connections, nominal pipe size 1/8 inch
  • - Standards: CE certified
