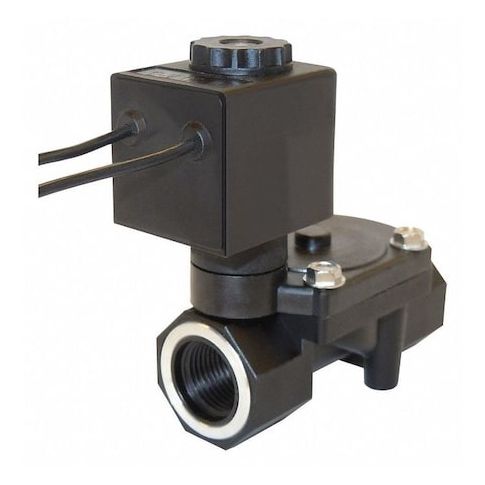

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 12VDC, Remote Pilot, Buna N MPN:3585-020-9232B

• The SPARTAN SCIENTIFIC 3585-020-9232B is a normally closed, 2-way, pilot-operated solenoid valve designed for use with air and water per fluid compatibility: Air, Water. It features a diaphragm valve design with a straight body style made of glass-filled nylon. The valve controls fluid flow by using an internal pilot actuator and has an orifice diameter of 1/2 inch. It operates with a nominal voltage of 12 VDC and includes the coil and sealing components required for installation. Outdoor rated

• IP65
• NEMA 4 environmental ratings per specification, and offers remote, automated flow control with a wire leads electrical connection.

  Key Features:

  • - Valve Type: Remote Pilot, Pilot Operated
  • - Valve Configuration: 2-Way, 2-Position, Normally Closed
  • - Body Material: Glass Filled Nylon
  • - Orifice Diameter: 1/2 in
  • - Connection Types: NPT inlet and outlet with NPT thread type
  • - Operating Voltage: 12 VDC
  • - Wattage: 6.5 W
  • - Electrical Connections: Wire Leads
  • - Coil Enclosure: Watertight, Dust Tight
  • - Coil Insulation Class: F
  • - Included Components: Coil and Seal
  • - Fluid Compatibility: Air, Water
  • - Operating Pressure Differential: 10 psi minimum
  • 150 psi maximum for air, light oil, and water
  • - Temperature Ratings: Ambient 50°F to 122°F
  • fluid maximum temperature 194°F
  • - Environmental and Mechanical Ratings: Outdoor rated, IP65, NEMA 4
  • - Dimensions: Overall Height 3-3/16 in
  • Length 2-23/32 in
  • Width 1-1/2 in
  • - Flow Coefficient (Cv): 2.45
  • - Seal Material: Buna N
  • - Standards: CE certified
