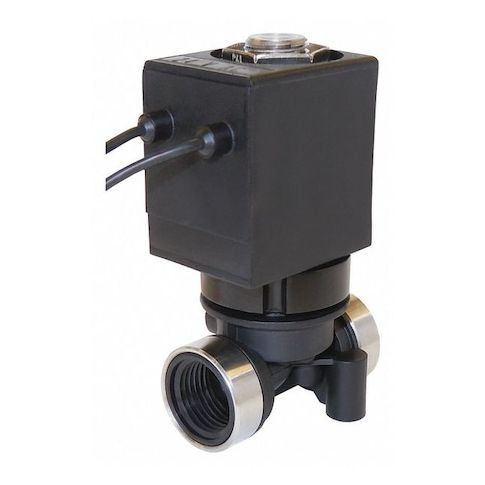

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Poppet, Direct Acting MPN:6200-E60-AAC3B
Free Shipping
In Stock
The Spartan Scientific 6200-E60-AAC3B solenoid valve is a reliable and efficient solution for controlling the flow of media in various applications. Suitable for use in pneumatic or hydraulic systems, this 2-way, 2-position valve features a direct-acting poppet design and operates at up to 75 psi differential and 140°F media temperature. Its compact size and IP65-rated enclosure make it ideal for outdoor environments, while its CE certification ensures compliance with European standards. Perfect for applications such as water treatment, HVAC, and industrial automation, this solenoid valve offers precise flow control and long-lasting performance in a range of demanding conditions.
Top product features:
- Direct Acting with normally closed starting configuration
- Poppet design
- Watertight, Dust Tight with Class F insulation
Top product applications:
- Pneumatic systems for automated manufacturing and assembly
- Hydraulic systems for heavy machinery and equipment
- Laboratory equipment for media handling and control
The SPARTAN SCIENTIFIC 6200-E60-AAC3B solenoid valve is a 2-way, 2-position, normally closed valve featuring a direct-acting poppet design housed in glass filled nylon. It controls the flow of media including air, inert gases, light oil, and water. Media compatibility and operation limits defined: air, inert gas, light oil, and water
- rated for operation up to 75 psi differential and up to 140°F media temperature
- operates with a 24V DC power supply. It includes the coil and sealing components required for installation and operation, enabling automated flow control in pneumatic or hydraulic systems.
Key Features:
- - Valve Body Style: Straight, 2-Way/2-Position configuration
- - Operation Type: Direct Acting with normally closed starting configuration
- - Valve Type: Poppet design
- - Body Material: Glass Filled Nylon
- - Seal Material: EPDM
- - Electrical: 24V DC voltage, 10 W wattage, wire leads connection
- - Coil Enclosure: Watertight, Dust Tight with Class F insulation
- - Connection Type: NPT inlet and outlet with 3/8 in nominal pipe size and thread type
- - Flow Coefficient (Cv): 0.52
- - Orifice Diameter: 5/32 in
- - Maximum Operating Pressure Differential: 75 psi for air, inert gas, light oil, and water
- - Maximum Media Temperature: 140°F
- - Ambient Temperature Range: 50°F to 122°F
- - Overall Dimensions: Length 1-13/16 in, Width 1-15/32 in, Height 3-7/32 in
- - IP65-rated enclosure and NEMA 4 protection indicate suitability for outdoor environments
- - Includes Coil and Seal
- - Standards: CE certified
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.44
- Package Height: 3.50
- Package Weight: 0.50
