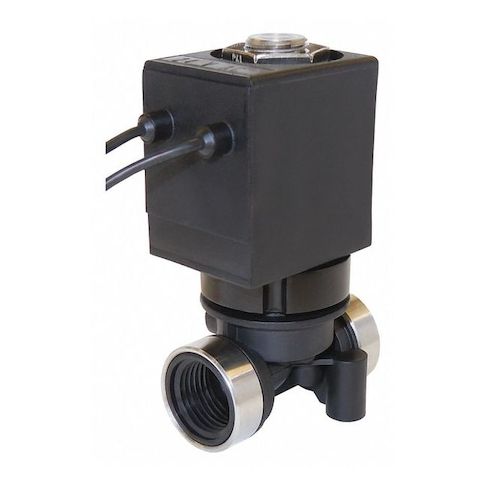

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V AC, Poppet, Direct Acting MPN:6200-B60-AAB6B

• The SPARTAN SCIENTIFIC 6200-B60-AAB6B is a 2-way, 2-position direct acting solenoid valve

• suitable for pneumatic or hydraulic systems requiring automated flow control. It features a normally closed poppet valve with a glass filled nylon body and Buna N seals, controls the flow of air, caustics, inert gases, light oil, and water within the specified operating conditions (Cv 0.52
• 24V AC, 60 Hz
• temperature and pressure ratings). This electrically actuated valve operates on 24V AC at 60 Hz
• enclosure is watertight and dust-tight
• insulation class F. Its valve design supports a maximum ambient temperature of 122°F and handles a maximum fluid temperature of 140°F. The valve includes coil and seals
• suitable for installation in pneumatic or hydraulic systems requiring automated flow control.

  Key Features:

  • - Valve Type & Configuration: 2-Way, 2-Position, Normally Closed, Poppet design
  • - Body Material: Glass filled nylon
  • - Seal Material: Buna N
  • - Operating Voltage: 24V AC, 60 Hz frequency
  • - Coil: Included
  • enclosure is watertight and dust-tight
  • insulation class F
  • - Connections: NPT inlet and outlet with 1/4 in nominal pipe size
  • - Maximum Operating Pressure Differential: 75 psi for air/inert gas, light oil, and water
  • - Flow Coefficient (Cv): 0.52
  • - Temperature Ratings: Maximum ambient 122°F, minimum ambient 50°F, maximum fluid 140°F
  • - Environmental Rating: Outdoor use
  • - Dimensions: Overall height 3-7/32 in, length 1-13/16 in, width 1-15/32 in
  • - Orifice Diameter: 5/32 in
  • - Standards: CE certified
  • - NEMA Rating: 4
  • - Electrical Connections: Wire leads
