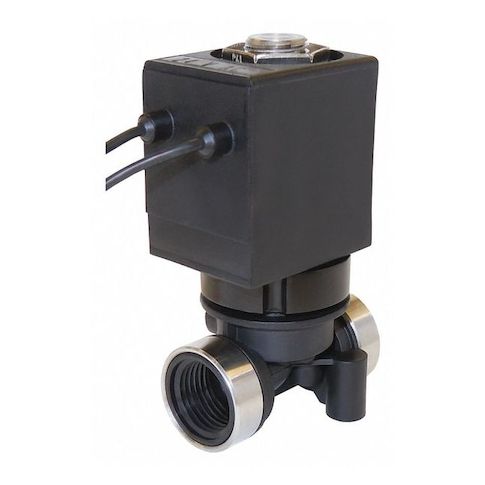

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Poppet, Direct Acting MPN:6200-B70-AAC3B

• The SPARTAN SCIENTIFIC 6200-B70-AAC3B is a 2-way, 2-position solenoid valve featuring a normally closed poppet design. It is a direct-acting valve constructed with a glass-filled nylon body and Buna N seals. The valve operates at 24V DC with a wattage of 10 W and comes complete with the coil and necessary seals. General-purpose use

• media compatibility: air, inert gases, light oil, and water. Maximum operating temperature: 140 °F. Outdoor-use per IP65 rating
• NEMA 4 enclosure (dust and water ingress protection per specifications).

  Key Features:

  • - Valve Body: Glass-filled nylon
  • - Seal Material: Buna N
  • - Voltage: 24 V DC
  • - Wattage: 10 W
  • - Valve Design: 2-Way/2-Position
  • Normally Closed
  • - Valve Type: Poppet
  • Operation Type: Direct Acting
  • - Nominal Pipe Size: 3/8 in with NPT inlet and outlet connections
  • - Orifice Diameter: 13/64 in
  • - Maximum Operating Pressure Differential: 50 psi for air/inert gas, light oil, and water
  • - Flow Coefficient (Cv): 0.61
  • - Electrical Connection: Wire leads
  • - Coil Enclosure: Watertight, dust tight
  • Coil Insulation Class: F
  • - Includes: coil and seals
  • - Environmental Rating: Outdoor
  • IP Rating: IP65
  • NEMA Rating: 4
  • - Ambient Temperature Range: 50 to 122 °F
  • - Overall Dimensions: Length 1-13/16 in, Height 3-7/32 in, Width 1-15/32 in
  • - Standards: CE certified
