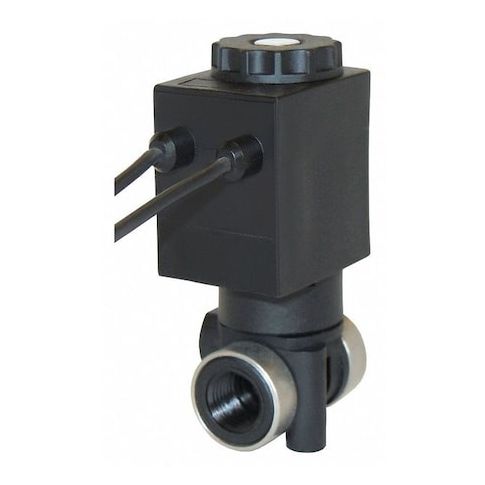

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 12VDC, Direct Acting, EPDM MPN:3827-E60-AA82B
Free Shipping
In Stock
The Spartan Scientific 3827-E60-AA82B solenoid valve is a reliable and efficient solution for automated control of air, light oil, and water in various industrial applications. Its direct acting design and normally closed configuration enable precise control and minimize downtime. Suitable for general purpose use, this valve can withstand outdoor conditions and extreme temperatures, making it ideal for use in harsh environments. Its compact size and easy electrical connections make it a convenient choice for a wide range of applications, including process control, fluid handling, and pneumatic systems.
Top product features:
- 2-Way/2-Position design allows for automated control of fluids with a normally closed configuration.
- Glass-filled nylon body provides durability and resistance to wear and tear.
- EPDM seal material ensures a reliable and long-lasting seal against fluids.
Top product applications:
- Automated control of air flow in HVAC systems
- Automated control of light oil in industrial applications
- Automated control of water flow in irrigation systems
The SPARTAN SCIENTIFIC 3827-E60-AA82B is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It uses an energized coil to move a plunger that opens or closes the flow path, enabling automated control of air, light oil, and water within a 0 to 200 psi differential. The valve features a glass-filled nylon body and is intended for general purpose use per the product specifications with an inlet and outlet connection type of NPT and a nominal pipe size of 1/8 inch. It operates at 12 VDC with a 6.5 W coil and wire leads for electrical connection. The valve is rated for outdoor use with a NEMA 4 enclosure and an IP65 rating, providing protection against dust and water ingress.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Glass Filled Nylon
- - Seal Material: EPDM
- - Orifice Diameter: 5/64 inch
- - Operating Pressure Differential: 0 to 200 psi for air, light oil, and water
- - Fluid Temperature Maximum: 194°F
- - Ambient Temperature Range: 50 to 122°F
- - Coil Enclosure: Watertight, Dust Tight
- - Coil Insulation Class: F
- - Electrical Connections: Wire Leads
- - Includes Coil and Seal
- - Overall Dimensions: Length 1-3/32 in, Width 1-3/32 in, Height 2-13/32 in
- - Voltage and Wattage: 12 VDC at 6.5 W
- - Environmental Rating: Outdoor
- - Standards: CE Certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.60
- Package Height: 1.70
- Package Weight: 0.25
