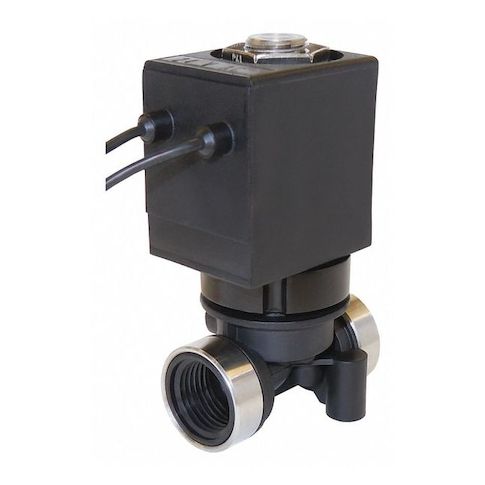

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V AC, Poppet, Direct Acting MPN:6200-B70-AAB6B

• The SPARTAN SCIENTIFIC 6200-B70-AAB6B is a 2-way, 2-position direct acting solenoid valve with a normally closed poppet design. It is constructed with a glass filled nylon body and Buna N seals, compatible with air, caustics, inert gases, light oil, and water within the specified operating conditions. The valve includes the coil and seal required for operation and features NPT threads for both inlet and outlet connections. Flow coefficient: Cv = 0.61

• nominal pipe size: 1/4 in
• capable of controlling flow within the specified Cv and pipe size under the rated operating conditions.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed, Direct Acting, Poppet type
  • - Body Material: Glass Filled Nylon
  • Seal Material: Buna N
  • - Connection Type: Inlet and Outlet NPT threads
  • Nominal Pipe Size: 1/4 in
  • - Electrical: 24V AC voltage
  • 10 W coil wattage
  • 60 Hz frequency
  • Wire Leads connections
  • - Coil Enclosure: Watertight, Dust Tight
  • Coil Insulation Class: F
  • - Operating Conditions: Ambient temperature range 50°F to 122°F
  • Fluid temperature up to 140°F
  • - Pressure Ratings: Maximum 75 psi operating pressure differential for air/inert gas, light oil, and water
  • - Flow Capacity: Orifice diameter 13/64 in
  • Flow coefficient (Cv) 0.61
  • - Environmental Rating: Outdoor
  • NEMA Enclosure Rating: 4
  • IP Rating: IP65
  • - Dimensions: Overall length 1-13/16 in
  • width 1-15/32 in
  • height 3-7/32 in
  • - Standards: CE certified
