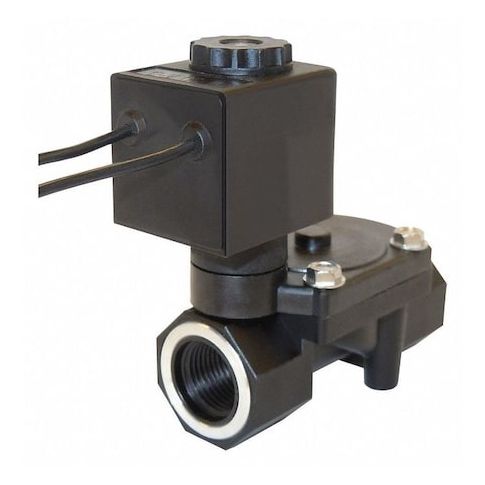

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Remote Pilot, Buna N MPN:3585-020-9237B
Free Shipping
In Stock
The Spartan Scientific 3585-020-9237B solenoid valve is a reliable and efficient solution for controlling air and water flow in various applications. With a normally closed starting configuration and remote pilot actuation, this 2-way, 2-position valve ensures precise control and minimizes downtime. Its rugged design and IP65 rating make it suitable for outdoor use, while its compact size and 1/2 inch nominal pipe size make it ideal for a range of industrial and commercial applications, including HVAC systems, water treatment plants, and pneumatic systems. Its 120V AC operation and CE certification ensure compliance with industry standards.
Top product features:
- The solenoid valve is normally closed, meaning it will block fluid flow unless energized by a coil.
- The valve is remotely controllable via an energized coil, allowing for external control of fluid flow.
- The valve is designed with a diaphragm and internal pilot actuator, enabling precise control over fluid flow.
Top product applications:
- Air Compressor Systems
- Water Treatment Plants
- Automotive Fuel Injection Systems
The SPARTAN SCIENTIFIC 3585-020-9237B is a 2-way, 2-position solenoid valve with a normally closed starting configuration. It operates using an internal pilot actuator and a diaphragm valve design in a straight body style. Media compatibility: air and water
- controlled remotely via an energized coil. Operating ambient temperature range: 50°F to 122°F. Maximum fluid temperature: 194°F. Operating differential pressure range: 10 psi to 150 psi. This valve features NPT inlet and outlet connections sized at 1/2 inch nominal pipe size.
Key Features:
- - Body Material: Glass filled nylon
- - Seal Material: Buna N
- - Coil enclosure rating: watertight and dust-tight per IP65
- - Electrical Connections: Wire leads
- - Coil Insulation Class: F
- - Voltage: 120V AC at 60 Hz frequency
- - Wattage: 6.5 W
- - Environmental Rating: Outdoor
- - IP Rating: IP65
- - NEMA Enclosure Rating: 4
- - Orifice Diameter: 1/2 inch
- - Overall Dimensions: Height 3-3/16 in, Length 2-23/32 in, Width 1-1/2 in
- - Includes Coil and Seal
- - Standards: CE certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.50
