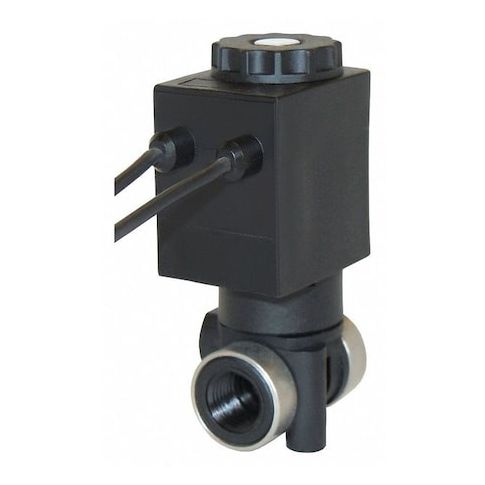

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 12V DC, Direct Acting, Buna N MPN:3827-B80-AA82B

• The SPARTAN SCIENTIFIC 3827-B80-AA82B is a 2-way, 2-position direct acting solenoid valve with a Normally Closed (NC) configuration. Constructed with a glass-filled nylon body and Buna N seals, it controls the flow of air, caustics, light oil, and water. The valve features a 1/8 inch orifice and NPT inlet and outlet connections with a nominal pipe size of 1/8 inch. It includes the coil and sealing components with a coil insulation class F and operates at 12 V DC with a wattage of 6.5 W. It has an IP65 rating and NEMA 4 enclosure for dust and water protection. Ambient Temperature Range: 50 to 122 °F. Fluid Temperature Maximum: 194 °F.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed (NC) configuration
  • - Operation: Direct Acting
  • - Body Material: Glass Filled Nylon
  • - Seal Material: Buna N
  • - Orifice Diameter: 1/8 in
  • - Nominal Pipe Size: 1/8 in NPT inlet and outlet connections
  • - Operating Pressure Differential: 0 psi minimum
  • 60 psi maximum for air, light oil, and water
  • - Electrical: 12 V DC, 6.5 W coil power, Wire Leads connection
  • - Coil Enclosure: Watertight, Dust Tight with IP65 and NEMA 4 ratings
  • - Includes: Coil and sealing components
  • - Ambient Temperature Range: 50 to 122 °F
  • - Fluid Temperature Maximum: 194 °F
  • - Environmental Rating: Outdoor
  • - Standards: CE certified
  • - Overall Dimensions: Height 2-13/32 in, Length 1-3/32 in, Width 1-3/32 in
