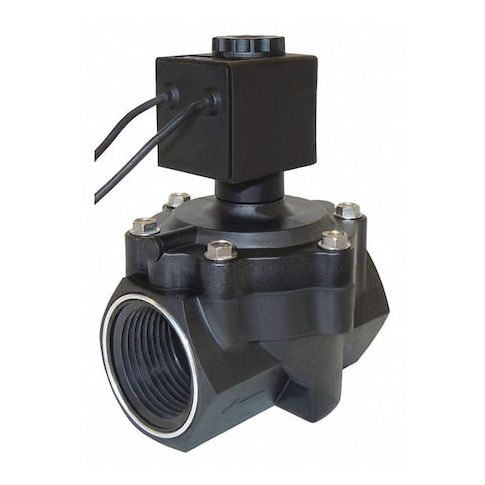

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Remote Pilot, EPDM MPN:3685-030-9217B
Free Shipping
In Stock
The Spartan Scientific 3685-030-9217B solenoid valve is a reliable and efficient solution for various industrial applications. This 2-way, 2-position valve is designed to operate in a normally closed position, ensuring a secure shut-off when not in use. Compatible with air, light oils, noble gases, and water, this valve is ideal for applications in process control, water treatment, and pneumatic systems. With a remote pilot valve and EPDM seals, this valve provides long-lasting performance and easy installation. Its compact design and NEMA 4 enclosure rating make it perfect for use in harsh environments, ensuring a smooth and reliable operation.
Top product features:
- Normally closed, 2-way solenoid valve
- Remote pilot valve type with internal pilot actuator and diaphragm valve design
- Fluid temperature rating up to 140°F for operating in warm environments
Top product applications:
- Air Compressor Systems
- Automotive Fuel Systems
- Water Treatment Plants
The SPARTAN SCIENTIFIC 3685-030-9217B is a normally closed, 2-way solenoid valve with media compatibility: air, light oils, noble gases, and water. It features a remote pilot valve type with an internal pilot actuator and diaphragm valve design. The valve body is constructed from Ultem resin and is equipped with EPDM seals. Maximum fluid temperature rating: 140°F. The valve operates at 120V AC and 60 Hz frequency and includes a coil with watertight and dust-tight enclosure and Class F insulation. It has a NEMA 4 enclosure rating.
Key Features:
- - Nominal Pipe Size: 3/4 in with NPT inlet and outlet connections and NPT thread type
- - Operating Pressure Differential: Minimum 10 psi
- Maximum 150 psi for air/inert gas, light oil, and water
- - Flow Coefficient (Cv): 9.5 GPM at 1 psi pressure drop
- - Operating Temperature Range: Ambient 50°F to 122°F
- Fluid up to 140°F
- - Dimensions: Overall Height 4-1/16 in
- Length 3 in
- Width 2-13/16 in
- - Electrical Connections: Wire leads
- Wattage 6.5 W
- - Includes coil and seals for installation
- - Valve body style: Straight
- Valve positions: 2-position
- Valve type: Remote pilot
- - Standards: CE certified
- IP Rating: IP65
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 5.50
- Package Height: 5.30
- Package Weight: 0.79
