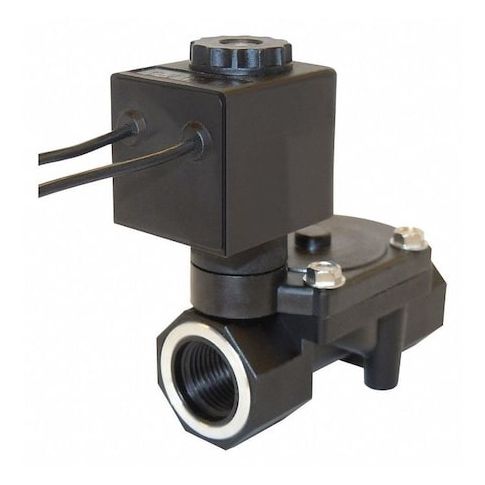

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120VAC, Remote Pilot, EPDM MPN:3585-030-9237B
Free Shipping
In Stock
The Spartan Scientific 3585-030-9237B solenoid valve is a reliable and efficient solution for controlling the flow of air and water in a variety of applications. With its 2-way, 2-position, normally closed design and remote pilot operation, this valve can be used in automated systems to regulate liquids and gases. Its compact size and NPT connections make it ideal for use in tight spaces, while its EPDM seals ensure a watertight seal. Suitable for use in outdoor environments, this valve is perfect for applications such as irrigation systems, water treatment plants, and HVAC systems.
Top product features:
- The valve controls the flow of air and water by using an energized coil to actuate an internal pilot diaphragm, enabling automated control of liquids and gases.
- The valve features NPT inlet and outlet connections with 1/2 inch nominal pipe size and orifice diameter.
- The valve includes a remote pilot operation, allowing for automated control of the valve from a remote location.
Top product applications:
- Automotive industry: The solenoid valve can be used to control the flow of fuel or other liquids in automotive applications, such as fuel injection systems or hydraulic systems.
- Industrial process control: The valve can be used to control the flow of liquids or gases in industrial processes, such as chemical processing, oil refining, or power generation.
- Aerospace industry: The valve can be used to control the flow of fluids in aerospace applications, such as fuel systems, hydraulic systems, or life support systems.
The SPARTAN SCIENTIFIC 3585-030-9237B is a 2-way, 2-position, normally closed solenoid valve with a diaphragm design and remote pilot operation. It controls the flow of air and water by using an energized coil to actuate an internal pilot diaphragm, enabling automated control of liquids and gases. Valve body material: glass-filled nylon. The valve includes the coil and seals required for installation and operation, and features NPT inlet and outlet connections with 1/2 inch nominal pipe size and orifice diameter.
Key Features:
- - Valve Body Style: Straight
- - Actuator Type: Internal Pilot
- - Operating Temperature Range: 50°F to 122°F ambient
- fluid temperature up to 194°F
- - Operating Pressure Differential: 10 psi minimum
- 150 psi maximum for air, inert gas, light oil, and water
- - Coil Enclosure: Watertight, Dust Tight with Class F insulation
- includes coil with wire leads
- - Electrical Specifications: 120 VAC, 60 Hz
- power consumption 6.5 W
- - Environmental Rating: Outdoor
- NEMA 4
- IP65
- - Seal Material: EPDM
- - Dimensions: Overall height 3-3/16 in
- length 2-23/32 in
- width 1-1/2 in
- - Standards: CE certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.40
- Package Height: 4.80
- Package Weight: 0.50
