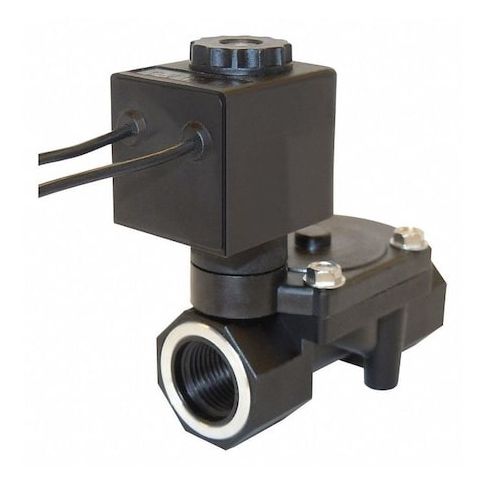

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Remote Pilot, EPDM MPN:3585-030-9227B
Free Shipping
In Stock
The SPARTAN SCIENTIFIC 3585-030-9227B is a reliable and versatile solenoid valve designed for air and water flow control in various industrial applications. Its remote pilot design allows for precise control and flexibility in system setup, while its diaphragm valve construction ensures smooth and quiet operation. With a Cv of 1.95 and a wide operating pressure range, this valve is suitable for use in applications such as water treatment, HVAC, and chemical processing. Its compact size and NEMA 4, IP65 rating make it an ideal choice for harsh environments, providing long-lasting performance and reliability.
Top product features:
- The valve is a normally closed, 2-way, remote pilot solenoid valve.
- The valve features a diaphragm design with an internal pilot actuator type.
- The valve is rated for fluid temperatures up to 194°F.
Top product applications:
- Air flow control in HVAC systems
- Water flow control in irrigation systems
- Control of light oil flow in industrial processes
The SPARTAN SCIENTIFIC 3585-030-9227B is a normally closed, 2-way, remote pilot solenoid valve designed for air and water flow control. It features a diaphragm valve design with an internal pilot actuator type, actuated by energizing the coil. The valve body is constructed from glass-filled nylon and utilizes EPDM seals. It operates within ambient temperatures ranging from 50°F to 122°F and is rated for fluid temperatures up to 194°F. Its coil is rated for 120V AC at 60 Hz and features an enclosure rated NEMA 4, IP65
- Class F insulation.
Key Features:
- - Valve Type: Remote Pilot, Diaphragm design
- - Valve Configuration: 2-Way, 2-Position, Normally Closed
- - Connections: 3/8 in NPT inlet and outlet with NPT thread type
- - Flow Capacity: Cv of 1.95 with a 1/2 in orifice diameter
- - Operating Pressure Differential: Minimum 10 psi
- Maximum 150 psi for air, light oil, and water
- - Materials: Glass-filled nylon body with EPDM seals
- - Electrical: Includes coil
- 120V AC, 60 Hz, 6.5 W
- wire leads
- - Environmental ratings: NEMA 4, IP65
- - Dimensions: Overall length 2-23/32 in, height 3-3/16 in, width 1-1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.25
- Package Height: 4.88
- Package Weight: 0.50
