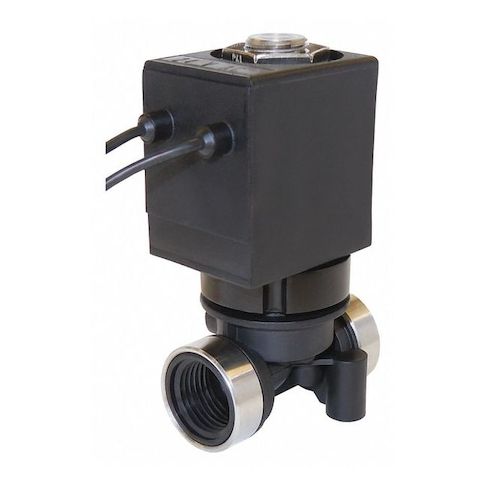

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 12V DC, Poppet, Direct Acting MPN:6200-B70-AAC2B
Free Shipping
In Stock
The Spartan Scientific 6200-B70-AAC2B solenoid valve is a reliable and versatile control device for a variety of media, including air, inert gases, light oil, and water. Its direct-acting design and normally closed poppet valve configuration enable remote actuation and automation, making it ideal for use in industrial applications, such as manufacturing, processing, and laboratory settings. With a durable glass-filled nylon body and Buna N seals, this valve provides long-lasting performance in outdoor environments, and its CE certification ensures compliance with international safety standards. Its compact size and 12V DC operation make it a convenient solution for a wide range of applications.
Top product features:
- Direct-acting solenoid valve with a normally closed poppet valve in a 2-way, 2-position configuration, capable of remote actuation and automation via electrical control.
- The valve body is constructed from glass-filled nylon with Buna N seals.
- The valve is rated for outdoor environmental use with an IP65 enclosure, a NEMA 4 enclosure rating, and operates within ambient temperatures from 50°F to 122°F.
Top product applications:
- Air Compressor Systems
- Inert Gas Delivery Systems
- Water Treatment Plants
The SPARTAN SCIENTIFIC 6200-B70-AAC2B controls flow of air, inert gases, light oil, and water within the media compatibility specified in the datasheet
- media compatibility with caustic media is not specified. It is a direct-acting solenoid valve with a normally closed poppet valve in a 2-way, 2-position configuration, capable of remote actuation and automation via electrical control. The valve body is constructed from glass-filled nylon with Buna N seals, and it includes the coil required for actuation. The valve is rated for outdoor environmental use with an IP65 enclosure, a NEMA 4 enclosure rating, and operates within ambient temperatures from 50°F to 122°F.
Key Features:
- - Valve Type: Poppet, 2-Way/2-Position configuration, Normally Closed
- - Body Material: Glass Filled Nylon
- - Seal Material: Buna N
- - Coil: Included
- Coil Insulation Class F
- Wattage 10 W
- Electrical Connections via Wire Leads
- Frequency 60 Hz
- Voltage 12 V DC
- - Connections: Inlet and Outlet with NPT thread type
- Nominal Pipe Size 3/8 in
- Thread Type NPT
- - Operating Pressure Differential: Maximum 50 psi for air/inert gas, light oil, and water
- Minimum 0 psi
- - Orifice Diameter: 13/64 in
- - Environmental Rating: Outdoor
- IP Rating IP65
- NEMA Enclosure Rating 4
- - Dimensions: Overall Height 3-7/32 in
- Overall Length 1-13/16 in
- Overall Width 1-15/32 in
- - Includes Seal: Yes
- - Standards: CE Certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.60
- Package Height: 3.50
- Package Weight: 0.55
