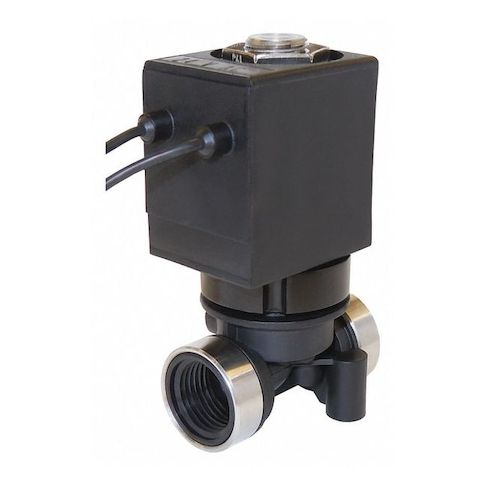

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, Poppet, Direct Acting MPN:6200-B60-AAB2B

• The SPARTAN SCIENTIFIC 6200-B60-AAB2B is a 2-way, 2-position solenoid valve with a normally closed poppet design. It operates as a direct-acting valve, using an energized coil to open or close the flow path for control of liquids or gases. Constructed with a glass-filled nylon body and Buna N seals, it is configured with straight valve body style and offers a nominal pipe size of 1/4 inch with NPT inlet and outlet connections. The valve includes the coil and seals necessary for installation and operation. Media compatibility: air, caustics, inert gases, light oil, water.

  Key Features:

  • - Operating Voltage: 12 V DC with 10 W coil power consumption
  • - Orifice Diameter: 5/32 inch
  • - Maximum Operating Pressure Differential: 80 psi (Air/Inert Gas, Light Oil, Water)
  • - Fluid Temperature Rating: Up to 140°F
  • - Ambient Temperature Range: 50°F to 122°F
  • - Coil Enclosure: Watertight, Dust Tight with Class F insulation
  • - Electrical Connections: Wire Leads
  • - Environmental Rating: Outdoor
  • - Overall Dimensions: Length 1-13/16 in, Width 1-15/32 in, Height 3-7/32 in
  • - Valve Body Material: Glass Filled Nylon
  • Seal Material: Buna N
  • - Flow Coefficient (Cv): 0.52
  • - NEMA Enclosure Rating: 4
  • - Includes Coil and Seal
  • - Standards: CE Certified
