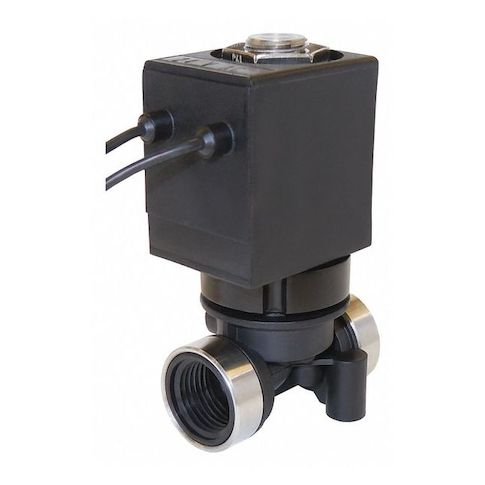

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Poppet, EPDM MPN:6200-E70-AAB7B

• The SPARTAN SCIENTIFIC 6200-E70-AAB7B is a 2-way, 2-position, normally closed solenoid valve featuring a poppet valve design and direct acting operation. Constructed with a glass-filled nylon body and EPDM seals, it is intended for general-purpose fluid control within its material, temperature, and pressure specifications, and is compatible with air, caustics, inert gases, light oil, and water within the specified ambient operating temperature range (50°F to 122°F) and fluid maximum temperature of 140°F. The valve includes an coil with wire lead electrical connections and a NEMA 4 rated enclosure suitable for outdoor use, rated for ambient temperatures from 50°F to 122°F. The valve’s internal orifice measures 13/64 inches, with NPT inlet and outlet connection types sized at 1/4 inch nominal pipe size.

  Key Features:

  • - Valve Type: Poppet, Direct Acting, 2-Way/2-Position, Normally Closed
  • - Body Material: Glass Filled Nylon
  • - Seal Material: EPDM
  • - Connection Types and Sizes: NPT inlet and outlet, 1/4 in nominal pipe size
  • - Operating Temperature: Ambient 50°F to 122°F
  • Fluid max 140°F
  • - Operating Pressure Differential Max: 75 psi for air/inert gas, light oil, and water
  • - Electrical: 120V AC, 10 W coil wattage, wire leads connection, coil insulation class F
  • - Environmental Rating: Outdoor
  • - Coil Enclosure: NEMA 4 rated
  • - Includes: Coil and seals
  • - Dimensions: Overall length 1-13/16 in
  • width 1-15/32 in
  • height 3-7/32 in
  • - Flow Coefficient (Cv): 0.61
  • - Frequency: 60 Hz
  • - Standards: CE certified
