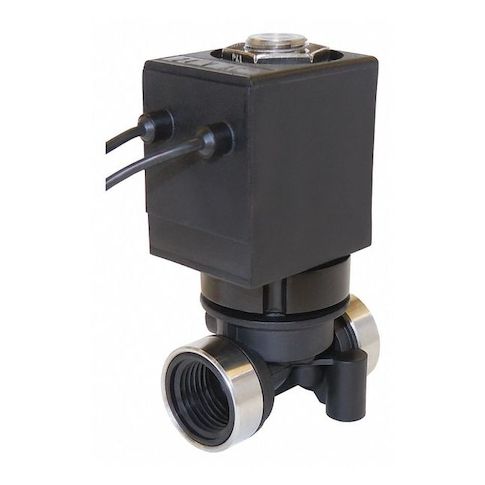

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, Poppet, Direct Acting MPN:6200-E60-AAB2B
Free Shipping
In Stock
The Spartan Scientific 6200-E60-AAB2B solenoid valve is a reliable and versatile solution for controlling the passage of air, inert gases, light oil, and water in various applications. Its direct acting, 2-way/2-position design with normally closed poppet type ensures precise control and efficient operation. Rated for outdoor use, this valve can withstand ambient temperatures from 50°F to 122°F and fluid temperatures up to 140°F. Ideal for general purpose applications, it's perfect for use in industrial automation, laboratory settings, and other environments where precise fluid control is required. Its compact size and easy installation make it a convenient choice for a wide range of applications.
Top product features:
- Direct acting design allows for faster response times and more precise control over fluid flow.
- Normally closed poppet design enables the valve to block fluid flow when not energized, providing a secure shut-off.
- Glass-filled nylon body provides corrosion resistance and durability in a wide range of operating conditions.
Top product applications:
- General purpose applications
- Controlling the passage of air, inert gases, light oil, and water
- Outdoor use in environments with ambient temperatures 50°F to 122°F and fluids up to 140°F
The SPARTAN SCIENTIFIC 6200-E60-AAB2B is a direct acting, 2-way/2-position solenoid valve with a normally closed poppet design. It features a glass-filled nylon body and is equipped with included coil and sealing components. Designed for general purpose applications, this valve controls the passage of air, inert gases, light oil, and water. The valve is rated for operation at 12 V DC and has a coil insulation class F. It is rated for outdoor use, with a NEMA 4 enclosure and an IP65 rating, rated for ambient temperatures 50°F to 122°F and fluids up to 140°F. The valve has a nominal pipe size of 1/4 inch with NPT inlet and outlet connections.*
Key Features:
- - Operating Voltage and Power: 12 V DC, 10 W
- - Valve Design: 2-Way/2-Position, Normally Closed poppet type
- - Material: Glass Filled Nylon body with EPDM seals
- - Connection Type: NPT inlet and outlet with 1/4 in nominal pipe size
- - Operating Pressure Differential: Minimum 0 psi, Maximum 80 psi for air, inert gases, light oil, and water
- - Flow Capacity: Cv of 0.52 through a 5/32 in orifice diameter
- - Physical Dimensions: Overall Length 1-13/16 in, Width 1-15/32 in, Height 3-7/32 in
- - Coil and Protection: Includes coil
- coil enclosure is IP65-rated, providing dust-tight and water ingress protection
- - Environmental Ratings: NEMA 4 enclosure, IP65 rating, rated for outdoor environments
- - Electrical Connections: Wire leads
- - Seal Material: EPDM
- - Standards: CE certified
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.44
- Package Height: 3.50
- Package Weight: 0.50
