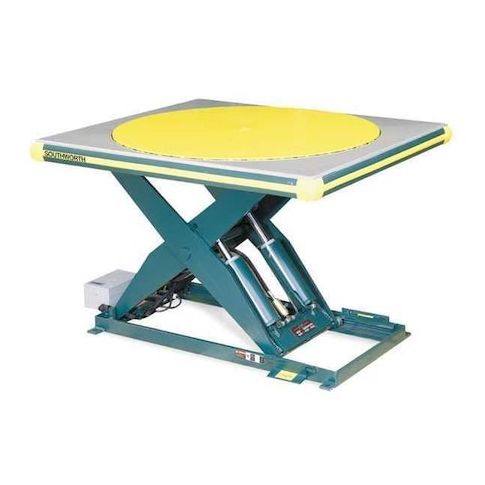

Scissor Lift Table, 3500 lb. Cap, 115V, 48"W, 48"L MPN:LS-4-36-4848-FTT

This item is a stationary hydraulic scissor lift table powered by an electric motor and controlled by a foot-operated control. It features a steel turntable-style platform that raises and lowers within a defined height range to support vertical positioning of loads. The unit operates on 115V AC single-phase power and uses a hydraulic lift mechanism housed within a steel frame.

Key Features:

• Lift Type: Stationary hydraulic scissor lift table.
• Load Capacity: Rated load capacity of 3,500 lb, with a listed maximum capacity of 4,000 lb.
• Lifting Range: Lifting height range from approximately 7-5/8 in lowered to 43-5/8 in raised.
• Platform Configuration: 48 in x 48 in steel turntable-style platform with a 3/8 in plate thickness.
• Power and Motor: Electric-powered lift with a 1 hp motor operating on 115V AC, single-phase power.
• Lift Speed: Upward travel time specified at 42 seconds.
• Controls: Foot-operated lift control connected by a 10 ft control cord.
• Construction: Steel frame and platform construction.
