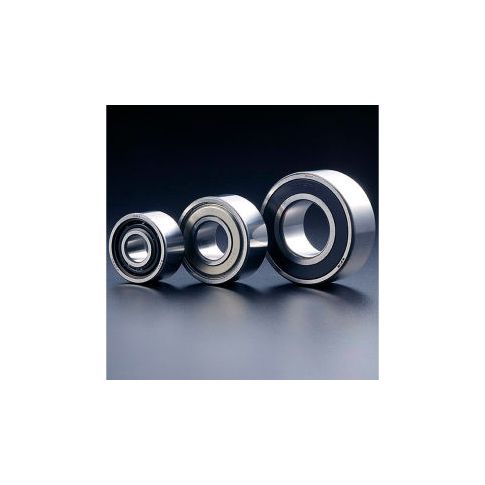

SMT 5200ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 30mm Bore 10mm Metric 5200ZZ
SMT 5200ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 30mm Bore 10mm Metric
The SMT 5200ZZ Double Row Angular Contact Ball Bearing is a high-performance bearing designed for applications that require increased axial and radial rigidity. Its double shielded design provides excellent protection against dust and contamination, making it ideal for use in harsh environments. With a 30mm outside diameter and 10mm bore, this bearing is suitable for a wide range of applications, including industrial machinery, robotics, and aerospace equipment. Its compact size and high rigidity make it an excellent choice for applications with limited space, providing smooth operation and extended lifespan.
Top product features:
- Double row angular contact ball bearings provide increased axial and radial rigidity in applications with design space limitations.
- The bearings have a 30 degree inverted outside contact angle.
- The bearings are matched back to back with inner and outer rings integrated.
Top product applications:
- Heavy machinery and industrial equipment
- Precision instruments and laboratory equipment
- High-speed machinery and robotics
This item is NOT returnable.
This item is NOT cancellable.
Smt 5200 series double row angular contact ball bearings consist of two single row angular contact ball bearings matched back to back arrangement with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings 6200 series. Smt 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.Additional Information
- UNSPSC: 31171531
- Brand: Smt
- Package Quantity: 1
- Country of Origin: JP
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.26
- Package Width: 1.26
- Package Height: 0.64
- Package Weight: 0.11
Product info last updated on May 19, 2025 3:13am UTC
Category: Bearings
