Saddle Clamp, Double Bale, 3/4 Outlet MPN:31300019206000

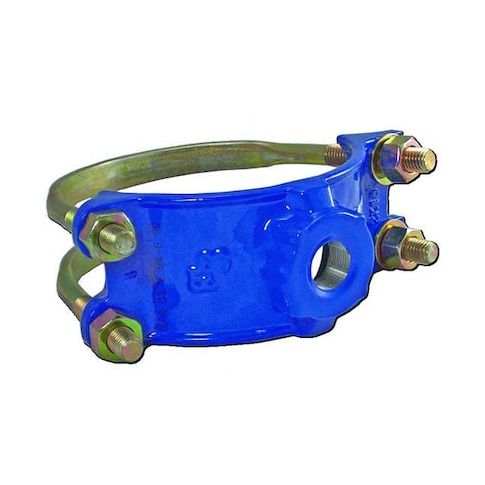

Saddle Clamp, Double Bale, 3/4 Outlet
This Saddle Clamp, Double Bale, 3/4 Outlet from Smith-Blair is a versatile and reliable solution for a variety of applications, including chemical processing and industrial piping systems. Made with durable carbon steel and ductile iron materials, it provides a secure and leak-free connection for pipes up to 1 1/2 inches in size. The clamp's maximum operating pressure of 300 psi ensures safe and efficient fluid transfer, while its epoxy finish provides long-lasting protection against corrosion. Ideal for use in cast iron, ductile iron, and steel piping systems, this saddle clamp is a valuable addition to any industrial or commercial setup.
Top product features:
- Clamp material is made of ductile iron for durability and resistance to wear.
- The clamp has a double bale design for secure and adjustable fitting.
- The outlet connection is NPT, allowing for threaded connections to pipes.
Top product applications:
- Saddle Clamp can be used in chemical processing to connect and secure cast iron, ductile iron, and steel pipes up to 300 psi.
- Saddle Clamp can be used in industrial settings to connect and secure pipes in applications involving chemicals.
- Saddle Clamp can be used in manufacturing to connect and secure pipes in applications involving cast iron, ductile iron, and steel.
Saddle Clamp, Bolt Material Carbon Steel, Clamp Material Ductile Iron, Clamp Material Finish Epoxy, Clamp Material Grade Not Applicable, For Maximum Outside Diameter 1 7/8 in, For Maximum Pipe Size 1 1/2 in, For Minimum Outside Diameter 1 5/8 in, For Minimum Pipe Size 1 1/2 in, Gasket Material NBR, Outlet Connection Type NPT, Outlet Pipe Size 3/4 in, For Fluid Type Chemicals, For Material Type Cast Iron, Ductile Iron, Steel, Maximum Operating Pressure 300 psi
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 4.70
- Package Weight: 3.25
Product info last updated on January 26, 2026 6:48pm UTC
Category: Pipes, Valves and Fittings
