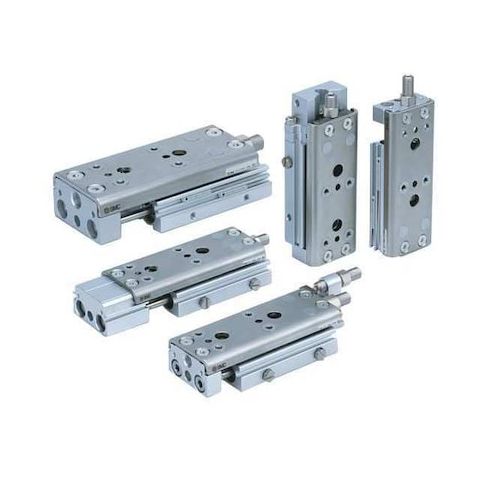

Precision Slide Table, 20mm Stroke MPN:MXQ20-20
Precision Slide Table, 20mm Stroke
Slide Table, Maximum Stroke 20 mm, Cylinder Bore Diameter 20 mm, Series MXQ, Thrust Force @ 100 psi 440 N, Minimum Actuation Time 0.04 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 0.4 sec, System of Measurement Metric
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.39
Product info last updated on February 24, 2026 4:29am UTC
