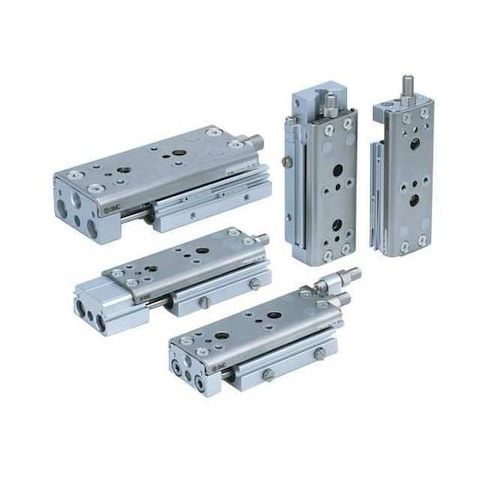

Precision Slide Table, 20mm Stroke MPN:MXQ12-20A
Precision Slide Table, 20mm Stroke
The Precision Slide Table from SMC offers precise and reliable motion control for a wide range of applications. With a 20mm stroke and 0.04-second actuation time, it's ideal for use in packaging, material handling, and medical device manufacturing. The table's high thrust force and accuracy make it suitable for heavy-duty applications, while its compact size and low operating pressure make it energy-efficient. It's also resistant to extreme temperatures and has a long lifespan, making it a reliable choice for demanding industries. Its precision and reliability make it a valuable asset for manufacturers seeking to improve productivity and quality.
Top product features:
- Stroke of 20 mm provides precise movement control.
- Thrust force of 158 N allows for heavy-duty applications.
- Actuation time of 0.04 seconds enables rapid response.
Top product applications:
- Precision slide tables are used in semiconductor manufacturing to position and move wafers during the fabrication process.
- They are used in medical device manufacturing to move and position components during the assembly process.
- Precision slide tables are used in the aerospace industry to position and move components during the assembly and testing of aircraft and spacecraft systems.
Slide Table, Maximum Stroke 20 mm, Cylinder Bore Diameter 12 mm, Series MXQ, Thrust Force @ 100 psi 158 N, Minimum Actuation Time 0.04 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 0.4 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.86
Product info last updated on March 28, 2026 7:45pm UTC
