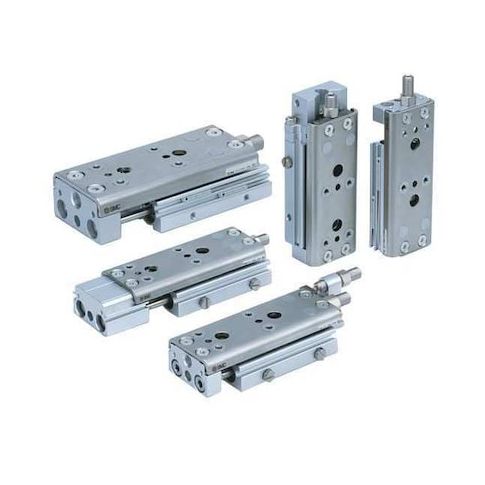

Precision Slide Table, 20mm Stroke MPN:MXQ12-20AS
Precision Slide Table, 20mm Stroke
The SMC Precision Slide Table is a reliable and precise solution for applications requiring smooth and controlled motion. With a 20mm stroke and 12mm cylinder bore diameter, this slide table is ideal for use in automation, robotics, and material handling systems. Its high thrust force of 158N and fast actuation time of 0.04 seconds enable efficient and precise movement. Suitable for applications in various industries, including medical, aerospace, and packaging, this slide table offers high accuracy and repeatability, making it a valuable addition to any system requiring precise motion control.
Top product features:
- 20mm stroke capability
- Cylinder bore diameter of 12mm
- Minimum actuation time of 0.04 seconds
Top product applications:
- Automotive assembly line for precise component placement
- Machine tool for precision cutting and drilling operations
- Medical device manufacturing for accurate component alignment
Slide Table, Maximum Stroke 20 mm, Cylinder Bore Diameter 12 mm, Series MXQ, Thrust Force @ 100 psi 158 N, Minimum Actuation Time 0.04 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 0.4 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.81
