Precision Slide Table, 50mm Stroke MPN:MXQ25-50C

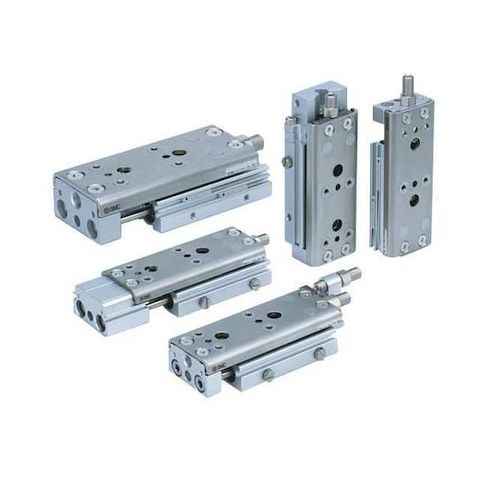

Precision Slide Table, 50mm Stroke
The Precision Slide Table from SMC is a reliable and precise solution for applications requiring smooth and controlled movement. With a 50mm stroke and 25mm cylinder bore diameter, this slide table is ideal for use in industries such as semiconductor manufacturing, medical devices, and precision machinery. Its high thrust force and fast actuation time make it perfect for applications where speed and accuracy are crucial. The table's durable design and wide temperature range also ensure reliable operation in various environments, making it a valuable asset for any precision engineering project.
Top product features:
- 50mm Stroke allows for precise movement and positioning of the slide table.
- Cylinder Bore Diameter of 25mm enables smooth and efficient operation.
- Thrust Force of 687N at 100psi provides a strong and reliable actuation.
Top product applications:
- Automotive Assembly Line
- Precision Slide Table is used in automotive assembly lines to position and assemble components with high precision and speed.
- Medical Device Manufacturing
Slide Table, Maximum Stroke 50 mm, Cylinder Bore Diameter 25 mm, Series MXQ, Thrust Force @ 100 psi 687 N, Minimum Actuation Time 0.1 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 1 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 6.48
Product info last updated on February 3, 2026 1:01pm UTC
